for P/N: C9404R=, C9404R-10A, C9407R-10A, C9407R-P, C9410R-96U-BNDL-1E, C9410R-96UBNDLA-RF
Overview

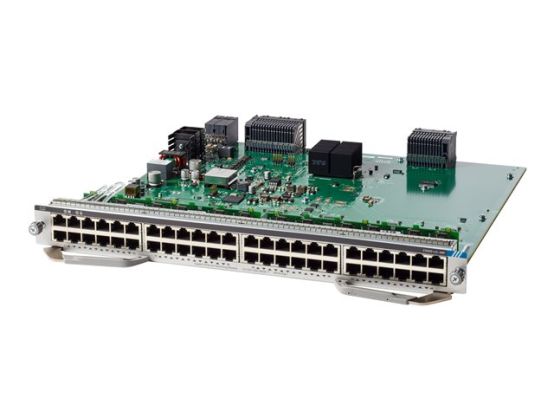

The Cisco Catalyst 9400 is Cisco's lead modular enterprise switching access platform built for security, IoT and cloud. This switch series forms the foundational building blocks for SD-Access - Cisco's leading enterprise architecture. The platform provides unparalleled investment protection with a chassis architecture that is capable of supporting up to 9Tbps of system bandwidth and unmatched power delivery for high density IEEE 802.3BT (60W PoE). Redundancy is now table stakes across the portfolio.
UPoE is enabled, capable of up to 60W on all the ports in the line card
Energy Efficient Ethernet 802.3az
IEEE 802.3af/at and Cisco pre-standard PoE
IEEE 802.1AE and Cisco TrustSec capability in hardware
Compliant StandardsCISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386 V1.6.1, EN 55022 Class A, IEEE 1588, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1
Software / System Requirements
OS RequiredCisco IOS XE 16.8.1 or later
Dimensions & Weight
Width4.06 cm
Depth37.9 cm
Height37 cm
Manufacturer Warranty
Service & SupportLimited warranty - replacement - lifetime - response time: next business day
