General
Device Type

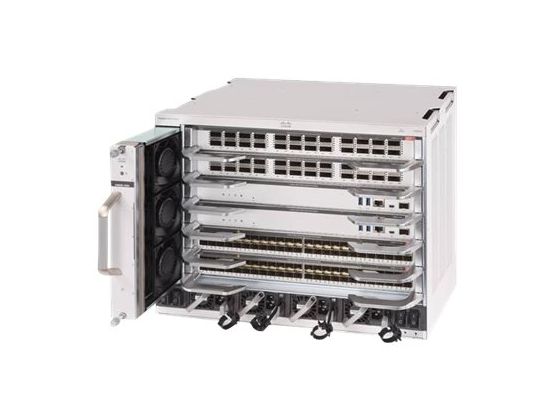

Switch - 72 ports - L3 - with Cisco Catalyst 9600 DNA Advantage Term License
Enclosure Type
Side to side airflow rack-mountable 8U
Subtype
100 Gigabit Ethernet
Ports
24 x 100 Gigabit Ethernet + 48 x 25 Gigabit Ethernet
Performance
Bandwidth per slot: 6.4 Tbps ¦ Switching capacity: up to 9.6 Tbps ¦ Forwarding performance: 3 Bbps
Routing Protocol
OSPF, IS-IS, RIP-2, BGP, EIGRP, IGMP, VRRP, PIM-SM, PIM-SSM, MSDP, RIPng, MPLS, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, TFTP
Encryption Algorithm
256-bit AES
Features
DHCP support, NAT support, NSF, SSO, MSTP support, ACL support, QoS, SRR, fan tray, VRF, CoS, DSCP support, LISP, L3VPN support, GIR mode, Superior QoS, CIR
Compliant Standards
IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
Processor
1 x Intel: 2 GHz
Built-in Devices
RFID tag, 960 GB SSD
Miscellaneous
MTBF
4,113,900 hours
Compliant Standards
IEC 60950-1, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, NOM-019-SCFI-1998, EN 60950-1:2006, EN 300 386 V1.6.1, EN 61000-3-3:2013, EN 61000-3-2:2014, FCC CFR47 Part 15 A, AS/NZS 60950-1:2011, EN 55024:2010+A1:2015, EN 55032:2012+AC:2013 Class A, KCC KN32 Class A, ICES-003:2016 issue 6 Class A, EN 55032:2015 Class A, CISPR 32 Class A, TCVN 7189 Class A, TCVN 7317, CISPR 24:2010+A1:2015, CNS13438:2006 Class A, GB 4943-95, KN35:2015
