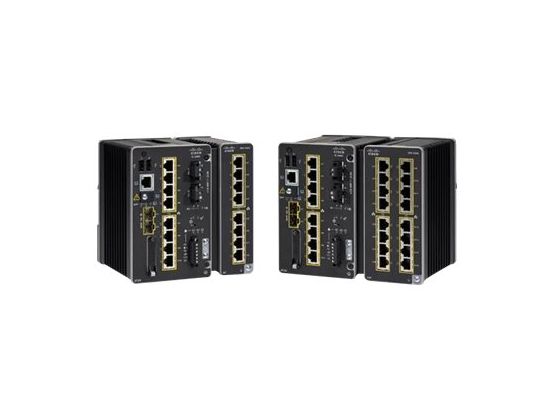

Name: Cisco Catalyst IE3400 Rugged Series - Network Essentials - switch - 10 ports - Managed
Brand: CISCO
SKU: 1TCPTRCP-013970
Price: 4303.07 GBP
Availability: OutOfStock

Overview

Main features

Cisco Catalyst IE3400 Rugged Series
Network Essentials
switch
Managed
8 x 10/100/1000 + 2 x Gigabit SFP
DIN rail mountable
DC power

Overview

The Cisco Catalyst IE3400 Rugged Series ushers in mainstream adoption of advanced Gigabit Ethernet connectivity in a compact form factor, modular switch purpose-built for a wide variety of extended enterprise and industrial applications.

Robust industrial design
Alarm I/O for monitoring and signaling to external equipment
Full Gigabit Ethernet interfaces

Robust industrial design Fanless, convection-cooled with no moving parts for extended durability. Full Gigabit Ethernet interfaces Provides secure access for new high-speed applications in the industrial space.

Specification

Product Description Cisco Catalyst IE3400 Rugged Series - Network Essentials - switch - 10 ports - Managed

Device Type Switch - 10 ports - Managed

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 + 2 x Gigabit SFP

Capacity Queues: 8 ¦ IGMP groups: 1000 ¦ VLAN IDs: 256 ¦ STP instances: 128 ¦ ACL: 1500

MAC Address Table Size 8K entries

Routing Protocol IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP

Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP

Features DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, DAI, PVST+, UDLD, IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, MIB, 802.1x authentication, PTP, IGMP filtering, IP source guard, REP, SmartPort technology, ICMP, CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, UDP, VTP v.3, BPDU Guard, Dying Gasp, VTP v.2

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2

Power DC 9.6 - 60 V 5.4 A

Power Redundancy Yes

Dimensions (WxDxH) 9.14 cm x 13.5 cm x 15.2 cm

Weight 1.7 kg

Manufacturer Warranty 5-year warranty

General

Device Type Switch - 10 ports - Managed

Enclosure Type DIN rail mountable

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 + 2 x Gigabit SFP

Capacity Queues: 8 ¦ IGMP groups: 1000 ¦ VLAN IDs: 256 ¦ STP instances: 128 ¦ ACL: 1500

MAC Address Table Size 8K entries

Routing Protocol IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP

Remote Management Protocol SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP

Authentication Method Secure Shell (SSH), RADIUS, TACACS+

Features DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, DAI, PVST+, UDLD, IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, MIB, 802.1x authentication, PTP, IGMP filtering, IP source guard, REP, SmartPort technology, ICMP, CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, UDP, VTP v.3, BPDU Guard, Dying Gasp, VTP v.2

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2

RAM 4 GB

Flash Memory 1.5 GB

Built-in Devices SD card reader

Expansion / Connectivity

Interfaces 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x mini-USB Type B ¦ 2 x alarm ¦ 1 x alarm

Expansion Slots 1 (total) / 1 (free) x SD Memory Card

Power

Power Device Internal power supply

Power Redundancy Yes

Voltage Required DC 9.6 - 60 V

Electric Current Required 5.4 A

Power Consumption Operational 39 Watt

Miscellaneous

MTBF 549,808 hours

Compliant Standards EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15

Dimensions & Weight

Width 9.14 cm

Depth 13.5 cm

Height 15.2 cm

Weight 1.7 kg

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - 5 years - response time: 10 days ¦ Technical support - 90 days

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 70 °C

Humidity Range Operating 5 - 95% (non-condensing)

Min Storage Temperature -40 °C
