Name: Cisco Integrated Services Router 1117 - Router - DSL modem 4-port switch - 1GbE - WAN ports: 2
Brand: CISCO
SKU: 1TNETRNE-008174
Price: 970.07 GBP
Availability: InStock

Overview

Main features

Cisco Integrated Services Router 1117
Router
DSL modem 4-port switch
1GbE
WAN ports: 2 -

Overview

The Cisco C1117-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.

Specification

Product Description Cisco Integrated Services Router 1117 - router - DSL modem - desktop

Device Type Router - DSL modem - 4-port switch (integrated)

Enclosure Type Desktop

Digital Signaling Protocol ADSL2+, VDSL2+

WAN Ports Qty 2

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Performance Encryption throughput: 250 Mbps

Network / Transport Protocol IPSec, PPPoE, DHCP, DNS, L2TPv3

Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP

Remote Management Protocol SNMP, RMON, CLI, TR-069

Features CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM

Compliant Standards IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2

Power AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) 32.3 cm x 23 cm x 4.2 cm

Weight 2.59 kg

Manufacturer Warranty 1-year warranty

General

Device Type Router - 4-port switch (integrated)

Enclosure Type Desktop

Connectivity Technology Wired

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Performance Encryption throughput: 250 Mbps

Network / Transport Protocol IPSec, PPPoE, DHCP, DNS, L2TPv3

Routing Protocol OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP

Remote Management Protocol SNMP, RMON, CLI, TR-069

Encryption Algorithm DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA

Authentication Method RADIUS

Features CBWFQ, WRED, ACL support, QoS, DMVPN, 2T2R MIMO technology, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM

Compliant Standards IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13

RAM 4 GB

Flash Memory 4 GB

Status Indicators Status

Communications

Type DSL modem

Digital Signaling Protocol ADSL2+, VDSL2+

Protocols & Specifications ITU G.992.5 Annex M, ITU G.993.2, ITU G.992.3 Annex M

Expansion / Connectivity

Interfaces WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 2 x 1000Base-T - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 1 x 1000Base-T (PoE) - RJ-45 ¦ USB 3.0: 1 x console ¦ WAN: 1 x VDSL2 / ADSL2+

Power

Voltage Required AC 120/230 V (50/60 Hz)

Dimensions & Weight

Width 32.3 cm

Depth 23 cm

Height 4.2 cm

Weight 2.59 kg

Manufacturer Warranty

Service & Support Limited warranty - advance parts replacement - 1 year - response time: 10 days

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 65 °C

Humidity Range Operating 5 - 95% (non-condensing)

Reviews

Read reviews

There are currently no reviews for this product

Be the first to add a review

Add a review

Accessories

CISCO

CISCO Cisco - SFP (mini-GBIC) transceiver module - 1GbE

10+ in stock

CISCO

Cisco - SFP (mini-GBIC) transceiver module - 1GbE

£192.21

£230.65 inc VAT

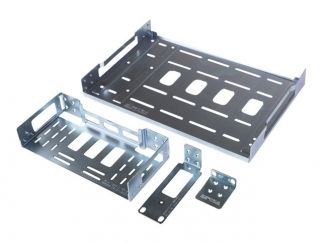

CISCO Cisco - Rack mounting kit - for Integrated Services Router 11XX
