INTEL

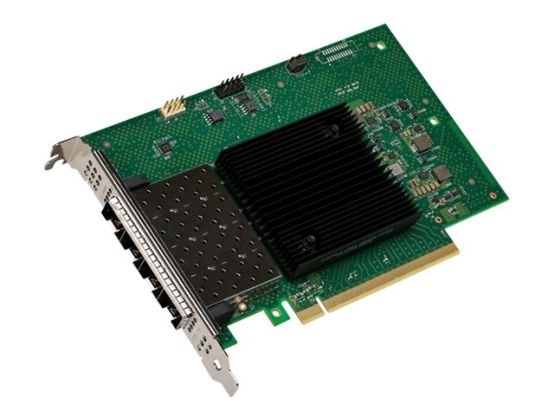

CISCO-INTEL E810XXVDA4L 4X25/10 GBE SFP28 PCIE NIC

Name: CISCO-INTEL E810XXVDA4L 4X25/10 GBE SFP28 PCIE NIC
Brand: INTEL
SKU: 1TCPTCOM-043326
Price: 1621.62 GBP
Availability: OutOfStock

SKU

1TCPTCOM-043326

Manufacture#: UCSC-P-I8Q25GF

£1351.35

£1621.62 inc VAT

Checking delivery…

Product details

Network adapter
PCIe 4.0 x16
25 Gigabit SFP28 x 4
for P/N: N9K-C9348D-GX2A, UCSC-C220-M6N=, UCSC-C225-M6S=, UCSC-C240-M6N=, UCSC-C245-M6SX=

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Intel E810XXVDA4L
Network adapter
PCIe 4.0 x16
25 Gigabit SFP28 x 4
for P/N: N9K-C9348D-GX2A, UCSC-C220-M6N=, UCSC-C225-M6S=, UCSC-C240-M6N=, UCSC-C245-M6SX=

Overview

Intel Ethernet 800 Series network adapters improve application efficiency and network performance with innovative and versatile capabilities. With its high 10/25GbE port density, the E810-XXVDA4 adapter is designed to optimize high-performance system workloads for Cloud and Communications.

Specification

Product Description Intel E810XXVDA4L - network adapter - PCIe 4.0 x16 - 25 Gigabit SFP28 x 4

Device Type Network adapter

Form Factor Plug-in card

Interface (Bus) Type PCI Express 4.0 x16

PCI Specification Revision PCIe 4.0

Ports 25 Gigabit SFP28 x 4

Dimensions (WxDxH) 16.7 cm x 11.1 cm

Data Link Protocol GigE, 10 GigE, 25 Gigabit Ethernet, RoCE v2

Data Transfer Rate 25 Gbps

Network / Transport Protocol TCP/IP, UDP/IP, iWARP

Manufacturer Warranty 3-year warranty

Designed For P/N: N9K-C9348D-GX2A, UCSC-C220-M6N=, UCSC-C220-M6S=, UCSC-C225-M6S, UCSC-C225-M6S=, UCSC-C240-M6L, UCSC-C240-M6L-BR, UCSC-C240-M6N, UCSC-C240-M6N=, UCSC-C240-M6S, UCSC-C240-M6S=, UCSC-C240-M6SN, UCSC-C240-M6SN-BR, UCSC-C240-M6SX, UCSC-C240-M6SX=, UCSC-C240-M6SX-BR, UCSC-C245-M6SX, UCSC-C245-M6SX=

General

Device Type Network adapter

Form Factor Plug-in card

Interface (Bus) Type PCI Express 4.0 x16

PCI Specification Revision PCIe 4.0

Networking

Ports 25 Gigabit SFP28 x 4

Connectivity Technology Wired

Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, RDMA over Converged Ethernet (RoCE v2)

Data Transfer Rate 25 Gbps

Network / Transport Protocol TCP/IP, UDP/IP, iWARP

Remote Management Protocol RMON

Features Switching, VLAN support, manageable, RDMA support, Virtual Machine Device Queues (VMDq), Single Root I/O Virtualization (SR-IOV), Storm Control, RDMA over Converged Ethernet (RoCE) v2, Advanced Packet Filtering, iWARP support, Data Plane Development Kit (DPDK), UEFI Secture Boot, MCTP over SMBus

Expansion / Connectivity

Interfaces 4 x 10Gb Ethernet/25Gb Ethernet - SFP28

Miscellaneous

Compliant Standards UL, VCCI, BSMI, KCC, RoHS 2 (2011/65/EU), IEEE 1588, FCC Subpart B

Dimensions & Weight

Depth 16.7 cm

Height 11.1 cm

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 60 °C

Humidity Range Operating 90% (non-condensing)

Compatibility Information

Designed For P/N: N9K-C9348D-GX2A, UCSC-C220-M6N, UCSC-C220-M6N=, UCSC-C220-M6S, UCSC-C220-M6S=, UCSC-C220-M6S-BR, UCSC-C225-M6N, UCSC-C225-M6S, UCSC-C225-M6S=, UCSC-C240-M6L, UCSC-C240-M6L-BR, UCSC-C240-M6N, UCSC-C240-M6N=, UCSC-C240-M6S, UCSC-C240-M6S=, UCSC-C240-M6SN, UCSC-C240-M6SN-BR, UCSC-C240-M6SX, UCSC-C240-M6SX=, UCSC-C240-M6SX-BR, UCSC-C245-M6SX, UCSC-C245-M6SX=
