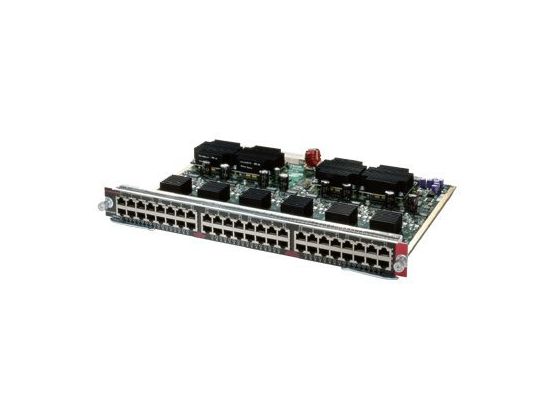

The Cisco Catalyst Line Card includes fiber and copper interfaces optimized for enterprise, commercial, and service provider Ethernet networks.¦The Cisco Catalyst 10G fiber Line Cards offer flexibility for GE and 10G, ability to scale in 6 and 12 port increments and a density of 100 10G ports/ system.
IEEE 802.3af and Cisco Prestandard PoE; IEEE 802.3x flow control;
Bandwidth allocated across six 8-port groups, providing 1 Gbps per port group;
Designed to power IP phones, wireless base stations, video cameras, and other IEEE-compliant powered devices.
FeaturesFlow control, half duplex mode, full duplex mode
Compliant StandardsIEEE 802.3af, IEEE 802.3x
Dimensions (WxDxH)36.2 cm x 27.3 cm x 3 cm
Pricing TypeRefurbished
Designed ForCatalyst 4503, 4506, 4507R
Extended Specification
General
Device TypeSwitch - 48 ports
Enclosure TypePlug-in module
SubtypeGigabit Ethernet
Compatible Slots1 x Expansion Slot
Ports48 x 10/100/1000 (PoE)
Power Over Ethernet (PoE)PoE
FeaturesFlow control, half duplex mode, full duplex mode
Compliant StandardsIEEE 802.3af, IEEE 802.3x
Expansion / Connectivity
Interfaces48 x 1000Base-T RJ-45 PoE
Miscellaneous
Compliant StandardsNEBS level 3, ETSI, CISPR 22 Class A, EN 60950, IEC950, UL 1950, VCCI Class A ITE, EN55024, EN55022 Class A, CSA 22.2 No. 60950, AS/NZS 3548, FCC Part 15 A
