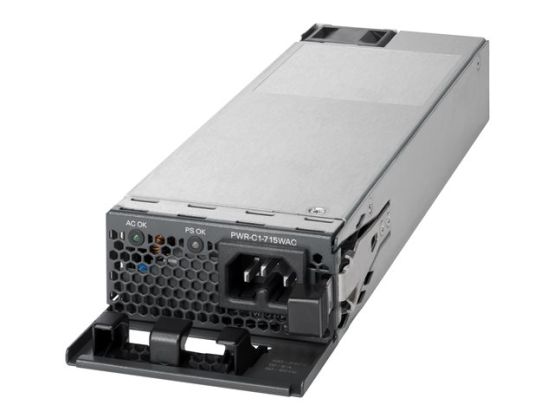

Cisco - Power supply - hot-plug / redundant (plug-in module) - AC 100-240 V - 715 watt - remanufactured - for Catalyst 3850-24, 3850-32, 3850-48, 9300, ONE Catalyst 3850-24, 3850-48
Manufacture#: PWR-C1-715WAC-RF
Checking delivery…
Product details
Power supply
hot-plug / redundant (plug-in module)
AC 100-240 V
715 Watt
Payment options available at checkout
Main features
Cisco
Power supply
hot-plug / redundant (plug-in module)
AC 100-240 V
715 Watt
refurbished
for Catalyst 3850-24, 3850-32, 3850-48, 9300; ONE Catalyst 3850-24, 3850-48
Overview
Cisco - power supply - hot-plug / redundant - 715 Watt
Product Description
Cisco - power supply - hot-plug / redundant - 715 Watt
Device Type
Power supply - hot-plug / redundant - plug-in module
Weight
1.3 kg
Input Voltage
AC 100-240 V
Output Voltage
-56 V
Power Capacity
715 Watt
Input Connectors
Power IEC 60320 C16
Pricing Type
Refurbished
Dimensions (WxDxH)
8.3 cm x 31 cm x 4 cm
Designed For
Catalyst 3850-24P-BA, 3850-24P-E, 3850-24P-L, 3850-24P-S, 3850-24PW-S, 3850-32XS-E, 3850-32XS-S (715 Watt), 3850-48P-E (715 Watt), 3850-48P-L (715 Watt), 3850-48P-S (715 Watt), 3850-48PW-S (715 Watt), 9300 (715 Watt), 9300 (Higher Scale) (715 Watt), 9300L (715 Watt); ONE Catalyst 3850-24P, 3850-48P
General
Device Type
Power supply - hot-plug / redundant - plug-in module
Power Device
Input Voltage
AC 100-240 V
Frequency Required
50 - 60 Hz
Input Connectors
Power IEC 60320 C16
Output Voltage
-56 V
Power Capacity
715 Watt
Miscellaneous
Compliant Standards
CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, AS/NZ 3548 Class A, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, BSMI Class A, VCCI Class A, EN 300 386
Pricing Type
Refurbished
Environmental Parameters
Min Operating Temperature
-5 °C
Max Operating Temperature
45 °C
Humidity Range Operating
5 - 90% (non-condensing)
Dimensions & Weight
Width
8.3 cm
Depth
31 cm
Height
4 cm
Weight
1.3 kg
Compatibility Information
Designed For
Cisco Catalyst 3850-24P-BA (715 Watt), 3850-24P-E (715 Watt), 3850-24P-L (715 Watt), 3850-24P-S (715 Watt), 3850-24PW-S (715 Watt), 3850-32XS-E (715 Watt), 3850-32XS-S (715 Watt), 3850-48P-E (715 Watt), 3850-48P-L (715 Watt), 3850-48P-S (715 Watt), 3850-48PW-S (715 Watt), 9300 (715 Watt), 9300 (Higher Scale) (715 Watt), 9300L (715 Watt) ¦ Cisco ONE Catalyst 3850-24P (715 Watt), 3850-48P (715 Watt)
