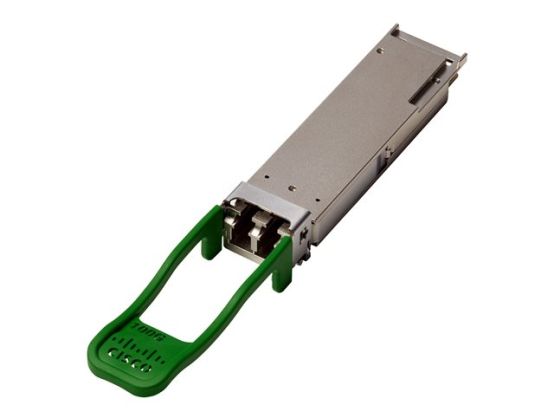

100GBASE CWDM4 QSFP TRANSCEIVER LC 2KM OVER SMF
Manufacture#: QSFP-100G-CWDM4-S=
£4596 .10
£5515.32 inc VAT
Checking delivery…
Product details
QSFP+ transceiver module
100GbE
100GBase-CWDM4
LC single-mode
Payment options available at checkout
Main features
Cisco
QSFP+ transceiver module
100GbE
100GBase-CWDM4
LC single-mode
up to 2 km
1271 nm / 1291 nm / 1311 nm / 1331 nm
Overview
The Cisco QSFP-100G-CWDM4-S module supports link lengths of up to 2 km over a standard pair of G.652 singlemode fiber (SMF) with duplex LC connectors. The 100 Gigabit Ethernet signal is carried over four wavelengths. Multiplexing and demultiplexing of the four wavelengths are managed within the device.
Product Description
Cisco - QSFP+ transceiver module - 100GbE
Device Type
QSFP+ transceiver module - LC single-mode
Form Factor
Plug-in module
Cabling Type
100GBase-CWDM4
Data Transfer Rate
100 Gbps
Optical Wave Length
1271 nm / 1291 nm / 1311 nm / 1331 nm
Data Link Protocol
100GbE
Max Transfer Distance
2 km
Dimensions (WxDxH)
1.84 cm x 7.24 cm x 1.35 cm
Weight
100 g
Manufacturer Warranty
90 days warranty
General
Device Type
QSFP+ transceiver module
Form Factor
Plug-in module
Colour
Green
Networking
Connectivity Technology
Wired
Cabling Type
100GBase-CWDM4
Data Link Protocol
100GbE
Data Transfer Rate
100 Gbps
Optical Wave Length
1271 nm / 1291 nm / 1311 nm / 1331 nm
Max Transfer Distance
2 km
Features
Hot swap module replacement
Compliant Standards
IEEE 802.3ba, ITU-T G.652, IEEE 802.3bm
Expansion / Connectivity
Interfaces
1 x Ethernet 100GBase-CWDM4 - LC single-mode female x 2
Miscellaneous
Compliant Standards
Laser Class 1, ELV, RoHS, GR-326-CORE, GR-20-CORE
Power
Power Consumption Operational
3.5 Watt
Dimensions & Weight
Width
1.84 cm
Depth
7.24 cm
Height
1.35 cm
Weight
100 g
Manufacturer Warranty
Service & Support
Limited warranty - 90 days
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
70 °C
