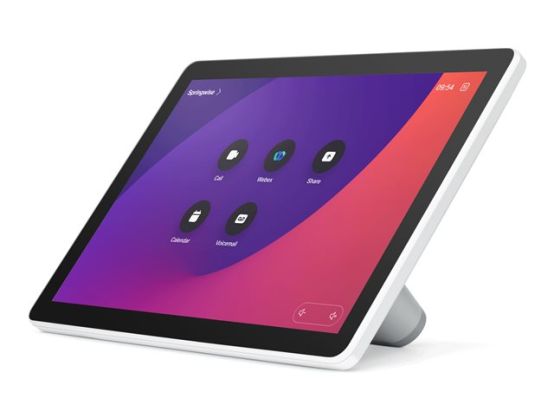

The Cisco Webex Room Navigator control unit is an intuitive device designed to give you access to several room controls, such as controlling Cisco videoconferencing systems, booking a room and controlling amenities within the room. This touch-based unit is optimized for an effortless user experience - from launching and ending a video or audio conference, to sharing content, and viewing contact lists and directories.
The Cisco Webex Room Navigator control unit enhances the ease of connection and communication by providing instant access to meeting, contacts, directories, and content. It supports two positions on the table with different angles, including a 180-degree rotation of the user interface when the device is tilted. Only one cable is needed to power the units and network access. The Room Navigator can be connected directly to a Webex Room device or remotely paired to it when plugged on a PoE network.
Product DescriptionCisco Webex Room Navigator - Table stand version video conference system remote control - first light
Device TypeVideo conference system remote control
Enclosure ColourFirst light
Dimensions (WxDxH)24.2 cm x 16.3 cm x 7.1 cm
Weight630 g
Connectivity TechnologyCable
Supported DevicesVideo conferencing system
Input DeviceTouch screen
DisplayLCD 1920 x 1200 - 10.1"
Audio InputMicrophone
Audio OutputSpeaker
Manufacturer Warranty90 days warranty
Extended Specification
General
Device TypeVideo conference system remote control
Width24.2 cm
Depth16.3 cm
Height7.1 cm
Weight630 g
Enclosure ColourFirst light
Connectivity TechnologyCable
Supported DevicesVideo conferencing system
Input DeviceTouch screen
FeaturesTable stand mount, temperature sensor, humidity sensor, air quality experimental sensor, capacitive touch interface, Power over Ethernet, built-in microphone, built-in speaker, LED indicator, anti-fingerprint, anti-glare
Display
DisplayLCD 10.1"
Colour DisplayYes
Touch ScreenYes
Display Format1920 x 1200
Network
Network Protocols SupportedTCP, IP, HTTPS, SSH
VoIP ProtocolsSRTP
Audio Input
TypeMicrophone
Audio Output
TypeSpeaker
Connections
Connector Type1 x LAN/power (RJ-45) ¦ 1 x USB (service only) (micro-USB)
Miscellaneous
Compliant StandardsIEEE 802.3af, SRTP, AES-128, AES-256, WPA3, IEEE 802.1x, Directive 2002/96/EU, Directive 2011/65/EU, Directive 2014/30/EU, Directive 2014/35/EU, EMC, EN 55032 Class A, EN 60950-1, EN 62479, EN55024, FCC CFR47 Part 15 B Class A, NRTL, RoHS, WEEE
