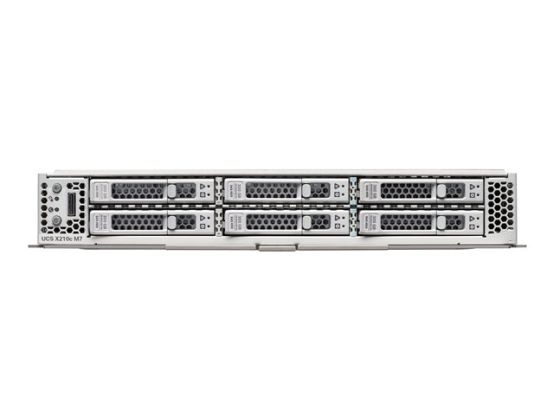

UCS 210C M7 COMPUTE NODE W/O CPU MEMORY STORAGE MEZZ
Manufacture#: UCSX-210C-M7
£3468 .38
£4162.06 inc VAT
Checking delivery…
Product details
Server
compute node
2-way
no CPU up to
Payment options available at checkout
Main features
Cisco UCS 210c M7
Server
compute node
2-way
no CPU up to
RAM 0 GB
SATA/SAS/NVMe
hot-swap 2.5" bay(s)
no HDD
G200e
monitor: none
Overview
The Cisco UCS X-Series Modular System simplifies your data center, adapting to the unpredictable needs of modern applications while also providing for traditional scale-out and enterprise workloads. It reduces the number of server types to maintain, helping to improve operational efficiency and agility as it helps reduce complexity. Powered by the Cisco Intersight cloud-operations platform, it shifts your thinking from administrative details to business outcomes - with hybrid-cloud infrastructure that is assembled from the cloud, shaped to your workloads, and continuously optimized.
Product Description
Cisco UCS 210c M7 - compute node no CPU - 0 GB - no HDD
Type
Server - compute node
Server Scalability
2-way
Processor
No CPU
RAM
0 GB (installed) / 8 TB (max) - DDR5 SDRAM - ECC
Storage Controller
RAID (SATA 6Gb/s)
Server Storage Bays
Hot-swap 2.5"
Hard Drive
No HDD
Optical Storage
No optical drive
Graphics Controller
Matrox G200e
Video Memory
16 MB
Software Included
Cisco Intersight
Dimensions (WxDxH)
28.65 cm x 60.2 cm x 4.57 cm
Weight
5.83 kg
Manufacturer Warranty
Limited warranty - replacement - 3 years - response time: next business day
General
Type
Server
Product Form Factor
Compute node
Server Scalability
2-way
Internal Bays Qty
2
Front Accessible Bays Qty
6
Hot-Swap Bays Qty
6
Processor / Chipset
CPU
No CPU
Max CPU Qty
2
CPU Upgradability
Upgradable
Chipset Type
Intel C741
RAM
Installed Size
0 GB (installed) / 8 TB (max)
Technology
DDR5 SDRAM - ECC
Rated Memory Speed
4800 MHz
Form Factor
DIMM 288-pin
Slots
32 (Total) / 32 (empty)
Features
Registered
Storage Controller
Type
RAID
Controller Interface Type
SATA 6Gb/s
RAID Level
RAID 1, JBOD
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
Matrox G200e
Video Memory
16 MB
Video Interfaces
OCuLink
Networking
Remote Management Controller
Intel Baseboard Management Controller (BMC), Cisco Integrated Management Controller
Expansion / Connectivity
Bays
6 (total) / 6 (free) x hot-swap 2.5"
Slots
1 (total) / 1 (free) x mLOM ¦ 2 (total) / 2 (free) x Mezzanine card ¦ 2 (total) / 2 (free) x M.2 Card
Interfaces
1 x OCuLink (1 front) (console)
Miscellaneous
Compliant Standards
WEEE, ACPI 6.2
Operating System / Software
Software
Cisco Intersight
Manufacturer Warranty
Service & Support
Limited warranty - replacement - 3 years - response time: next business day
Dimensions & Weight
Width
28.65 cm
Depth
60.2 cm
Height
4.57 cm
Weight
5.83 kg
Environmental Parameters
Min Operating Temperature
10 °C
Max Operating Temperature
35 °C
Humidity Range Operating
5 - 90% (non-condensing)
