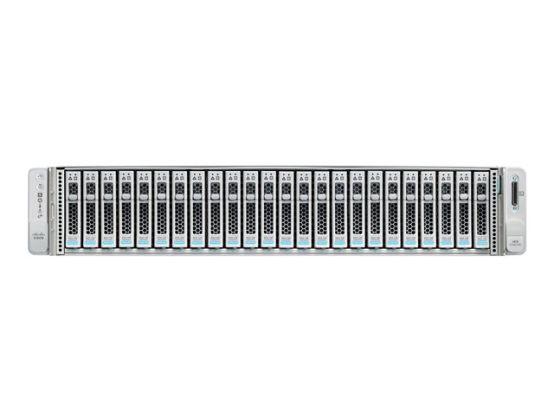

The Cisco UCS C240 M7 Rack Server is well-suited for a wide range of storage and I/O-intensive applications such as big-data analytics, databases, collaboration, virtualization, consolidation, and high-performance computing in its two-socket, 2RU form factor.
Slots3 (total) / 3 (free) x expansion slot (riser card only) ¦ 1 (total) / 1 (free) x mLOM ¦ 2 (total) / 2 (free) x M.2 Card
Interfaces1 x management (Gigabit Ethernet) - RJ-45 (1 rear) ¦ 1 x serial (RS-232) - RJ-45 (1 rear) ¦ 1 x VGA - DB-15 (1 rear) ¦ 2 x USB 3.0 (2 rear) ¦ 1 x KVM (1 in front)
Miscellaneous
Included Accessories24 x SFF drive blanking panel, 32 x DIMM blanks, riser blanking panel, 2 x power supply blanking panel
Compliant StandardsACPI 6.2, 47 CFR Part 15 Class A, AS/NZS 60950-1, AS/NZS 62368.1, AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, CAN/CSA-C22.2 No. 62368-1, CISPR 24, CISPR 32 Class A, CNS 13438 Class A, Directive 2014/30/EU, Directive 2014/35/EU, EN 300 386, EN 55032 Class A, EN 60950-1, EN 61000-3-2, EN 61000-3-3, WEEE, EN 62368-1, EN55024, GB 4943, ICES-003 Class A, (EU) 2019/424, IEC 60950-1, IEC 62368-1, KN32 Class A, KN35, UL 60950-1, UL 62368-1, VCCI Class A
Power
Device TypePower supply - hot-plug
Power RedundancyOptional
Power Redundancy Scheme1+1
Installed Qty
Max Supported Qty2
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 3 years - response time: next business day
Dimensions & Weight
Width42.9 cm
Depth76.2 cm
Height8.7 cm
Environmental Parameters
Min Operating Temperature5 °C
Max Operating Temperature45 °C
Humidity Range Operating8 - 90% RH (non-condensing)
