CISCO

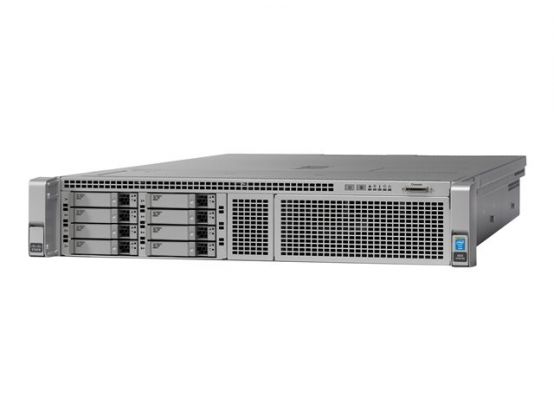

Cisco UCS SmartPlay Select C240 M4S High Core 2 - rack-mountable - Xeon E5-2680V4 2.4 GHz - 64 GB - no HDD

Name: Cisco UCS SmartPlay Select C240 M4S High Core 2 - rack-mountable - Xeon E5-2680V4 2.4 GHz - 64 GB - no HDD
Brand: CISCO
SKU: 1TCOMSRV-008158
Price: 4225.92 GBP
Availability: OutOfStock

SKU

1TCOMSRV-008158

Manufacture#: UCSSPRC240M4BC2-RF

Be the first to review this product

£3521.60

£4225.92 inc VAT

Checking delivery…

Product details

Server
rack-mountable
2U
2-way

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Cisco UCS SmartPlay Select C240 M4S High Core 2
Server
rack-mountable
2U
2-way
2 x Xeon E5-2680V4 / up to 3.3 GHz
RAM 64 GB
SATA/SAS
hot-swap 2.5" bay(s)
no HDD
G200e
Gigabit Ethernet
no OS
monitor: none
remanufactured

Overview

Enjoy this UCS C240 M4 rack server, that can be directly connected to UCS 6200 fabric interconnects for a higher I/O, UCS manager integrated solution, and can still connect via the N2232PP FEX. This Cisco UCS C240 M4 SFF server offer comes with extensive memory, powerful processor, and multiple drives in a 2U form factor.

Specification

Product Description Cisco UCS SmartPlay Select C240 M4S High Core 2 - rack-mountable - Xeon E5-2680V4 2.4 GHz - 64 GB - no HDD

Type Server - rack-mountable

Height (Rack Units) 2U

Server Scalability 2-way

Processor 2 x Intel Xeon E5-2680V4 / 2.4 GHz (, up to 3.3 GHz, (14-core)

Processor Socket LGA2011-v3 Socket

Cache Memory 70 MB L3 Cache

Cache Per Processor 35 MB

RAM 64 GB (installed) / 768 GB (max) - DDR4 SDRAM - ECC - PC4-19200

Storage Controller RAID (SAS 12Gb/s)

Server Storage Bays Hot-swap 2.5"

Hard Drive No HDD

Optical Storage No optical drive

Graphics Controller Matrox G200e

Video Memory 8 MB

Networking 1GbE

Power Redundancy Yes

OS Provided No operating system

Dimensions (WxDxH) 44.8 cm x 73.8 cm x 8.7 cm

Pricing Type Remanufactured

Manufacturer Warranty Limited warranty - replacement - 3 years - response time: next business day

General

Type Server

Product Form Factor Rack-mountable - 2U

Server Scalability 2-way

Hot-Swap Bays Qty 8

Processor / Chipset

CPU Intel Xeon E5-2680V4

Clock Speed 2.4 GHz

Max Turbo Speed 3.3 GHz

Number of Cores 14-core

CPU Qty 2

Max CPU Qty 2

CPU Upgradability Upgradable

CPU Socket LGA2011-v3 Socket

Cache Memory

Installed Size L3 Cache - 70 MB

Cache Per Processor 35 MB

RAM

Installed Size 64 GB / 768 GB (max)

Technology DDR4 SDRAM - ECC

Effective Memory Speed 2400 MHz

Rated Memory Speed 2400 MHz

Memory Specification Compliance PC4-19200

Form Factor DIMM 288-pin

Slots 24 (Total) / 22 (empty)

Features Memory Mirroring, dual rank, Load-Reduced DIMM (LRDIMM)

Configuration Features 2 x 32 GB

RAM Supported PC4-17000 - 384 GB registered - ECC ¦ PC4-17000 - 768 GB Load-Reduced - ECC

Hard Drive

Type No HDD

Storage Controller

Type 1 x RAID

Controller Interface Type SAS 12Gb/s

Optical Storage

Type No optical drive

Card Reader

Supported Flash Memory Cards SD Memory Card

Monitor

Monitor Type None.

Graphics Controller

Graphics Processor Matrox G200e

Video Memory 8 MB

Video Interfaces VGA

Networking

Ethernet Ports 2 x Gigabit Ethernet

Ethernet Controller Intel I350

Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet

Expansion / Connectivity

Bays 8 (total) / 8 (free) x hot-swap 2.5" SFF

Slots 2 (total) / 1 (free) x SD card ¦ 1 (total) / 1 (free) x PCIe x8 - three-quarter-length, full-height ¦ 1 (total) / 1 (free) x PCIe x16 - full-length, full-height ¦ 1 (total) / 1 (free) x PCIe x8 - full-length, full-height

Interfaces 2 x USB 3.0 (2 rear) ¦ 1 x VGA (1 rear) ¦ 1 x serial - RJ-45 (1 rear) ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 (2 rear) ¦ 1 x management (NIC) - RJ-45 (1 rear) ¦ 1 x KVM (1 in front)

Miscellaneous

Included Accessories 2 x CPU Heatsink, 32 GB SD Memory Card, Cisco Ball Bearing Rail Kit

Compliant Standards CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, UL 60950-1 Second Edition, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, KN24, KN22 Class A, GB4943.1-2001, EN 55022 Class A, EN 300 386

Pricing Type Remanufactured

Power

Device Type Power supply - hot-plug

Power Redundancy Yes

Installed Qty 2

Max Supported Qty 2

Power Provided 1200 Watt

Operating System / Software

OS Provided No operating system

Manufacturer Warranty

Service & Support Limited warranty - replacement - 3 years - response time: next business day

Dimensions & Weight
