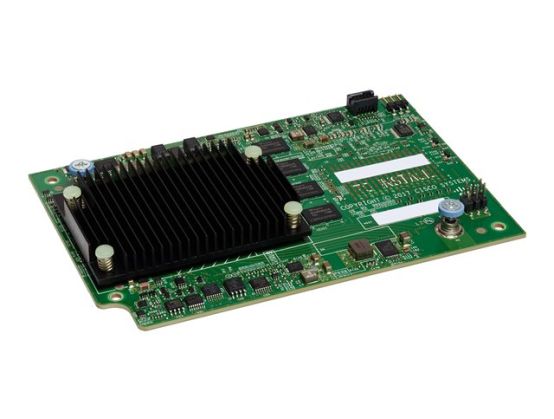

CISCO UCS VIC 1480 MODULAR LOM FOR BLADE SERVERS
Manufacture#: UCSB-VIC-M84-4P
Checking delivery…
Product details
Network adapter
Mezzanine Card
40Gb Ethernet x 2
for UCS B200 M5, B480 M5, SmartPlay Select B200 M5
Payment options available at checkout
Main features
Cisco UCS Virtual Interface Card 1480
Network adapter
Mezzanine Card
40Gb Ethernet x 2
for UCS B200 M5, B480 M5, SmartPlay Select B200 M5
Overview
The Cisco UCS VIC 1480 is a dual-port 40-Gbps or dual 4x-Gbps Ethernet/FCoE capable mezzanine card designed for the M5 generation of Cisco UCS B-Series Blade Servers. The card enables a policy-based, stateless, agile server infrastructure that can present PCIe standards-compliant interfaces to the host that can be dynamically configured as either NICs or HBAs.
Product Description
Cisco UCS Virtual Interface Card 1480 - network adapter - Mezzanine Card - 40Gb Ethernet x 2
Device Type
Network adapter
Form Factor
Plug-in module
Interface (Bus) Type
Mezzanine Card
Ports
40Gb Ethernet x 2
Dimensions (WxDxH)
7.37 cm x 14.9 cm x 3.38 cm
Data Link Protocol
40GbE
Performance
Maximum IOPS: 900000 operations per second
Capacity
Jumbo frame size: 9000
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1BR
Designed For
UCS B200 M5, B480 M5, SmartPlay Select B200 M5
General
Device Type
Network adapter
Form Factor
Plug-in module
Interface (Bus) Type
Mezzanine Card
Networking
Ports
40Gb Ethernet x 2
Connectivity Technology
Wired
Data Link Protocol
40 Gigabit Ethernet
Performance
Maximum IOPS: 900000 operations per second
Capacity
Jumbo frame size: 9000
Features
RSS, SR-IOV, NetFlow, Transparent (N_Port ID Virtualization - NPIV) mode support, iSCSI boot, VXLAN, NVGRE, Mware NetQueue and Microsoft VMQ, DPDK, usNIC
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ae, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1BR
Expansion / Connectivity
Interfaces
2 x 40Gb Ethernet - SFP28
Power
Power Consumption Operational
21 Watt
Dimensions & Weight
Width
7.37 cm
Depth
14.9 cm
Height
3.38 cm
Compatibility Information
Designed For
Cisco UCS B200 M5 Blade Server, B200 M5 Blade Server (Tracer), B480 M5 Blade Server, SmartPlay Select B200 M5, SmartPlay Select B200 M5 (Tracer), SmartPlay Select B200 M5 Advanced 1, SmartPlay Select B200 M5 Advanced 1 (Tracer), SmartPlay Select B200 M5 Advanced 2, SmartPlay Select B200 M5 Advanced 2 (Tracer), SmartPlay Select B200 M5 Advanced 3, SmartPlay Select B200 M5 Advanced 4, SmartPlay Select B200 M5 Advanced 4 (Tracer), SmartPlay Select B200 M5 Basic 1, SmartPlay Select B200 M5 Basic 1 (Tracer), SmartPlay Select B200 M5 High Core 1, SmartPlay Select B200 M5 High Core 1 (Tracer), SmartPlay Select B200 M5 High Core 2, SmartPlay Select B200 M5 High Core 2 (Tracer), SmartPlay Select B200 M5 High Frequency 1, SmartPlay Select B200 M5 High Frequency 1 (Tracer), SmartPlay Select B200 M5 High Frequency 2, SmartPlay Select B200 M5 High Frequency 3, SmartPlay Select B200 M5 High Frequency 3 (Tracer), SmartPlay Select B200 M5 Standard 1, SmartPlay Select B200 M5 Standard 1 (Tracer), SmartPlay Select B200 M5 Standard 2, SmartPlay Select B200 M5 Standard 2 (Tracer)
