small room conference system (touchscreen console, video bar, mini-PC)
Overview

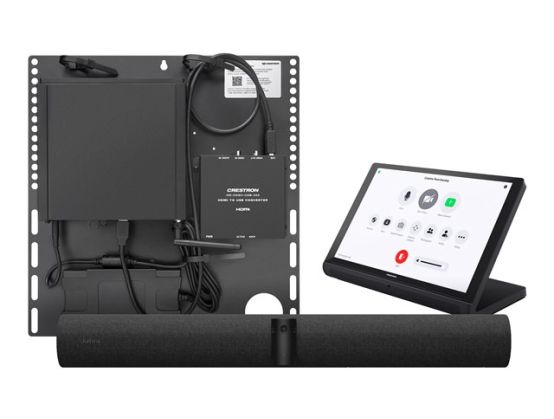

The UC-B31-Z Crestron Flex tabletop conferencing system provides a small room video conference solution for use with Zoom Rooms software. It supports up to three video displays and features a tabletop touch screen, Jabra PanaCast 50 video bar, UC bracket assembly, PoE injector, and cables.
Kit ContentTouchscreen console, video bar, mini-PC
Dimensions & Weight DetailsVideo bar - Width 65 cm Depth 12.5 cm Height 9 cm Weight 2.2 kg ¦ Touch screen - Width 24.5 cm Depth 11.9 cm Height 24.5 cm Weight 1.105 kg ¦ Main system - Width 36.8 cm Depth 4.8 cm Height 38.1 cm Weight 3.5 kg
Built-in DevicesStatus LED
Display
TechnologyTFT active matrix
Diagonal Size10.1"
Native Resolution1920 x 1200
Image Aspect Ratio16:10
Image Brightness400 cd/m²
Image Contrast Ratio1000:1
Monitor FeaturesTouch screen, 16.7 million colour depth, LED-backlit, Projected Capacitive Touch (P-CAP) technology, 5-point multi-touch, 160° viewing angle, Auto Brightness Control
Video Input
TypeDigital camera (colour) - integrated
Digital Video Capture Resolution3840 x 1080
Digital Zoom6
FeaturesTriple cameras, 180° field of view (horizontal), 30 fps, automatic speaker tracking
Video Output
TypeCodec board - external
Max External Resolution1920 x 1080
Audio Input
Type8-microphone array - integrated
Frequency Response100 - 8000 Hz
Audio Output
TypeSpeaker(s)
Sound Output ModeStereo
Frequency Response80 - 20000 Hz
Input Device
Type10.1" touchscreen
Networking
Connectivity TechnologyWireless, wired
Data Link ProtocolIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Ethernet, Fast Ethernet
Network / Transport ProtocolTCP/IP, UDP/IP, DHCP, SFTP, IPv4, IPv6
Interfaces2 x USB 2.0 - 4 pin USB Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX (PoE+) - RJ-45 ¦ 1 x audio - line-In - mini-phone stereo 3.5 mm ¦ 1 x network - RJ-45 ¦ 1 x USB-C - 24 pin USB-C
Miscellaneous
Mounting KitIncluded
Included AccessoriesWall mount, PoE injector, HDMI to USB 3.0 converter
