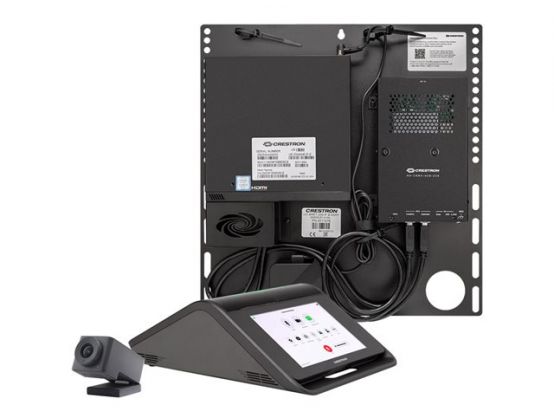

The UC-MX50-Z system provides a complete video conference room solution for use with the Zoom Rooms software. It supports up to three video displays, and features the Crestron Flex tabletop conference device, a pre-built, ready-to-mount UC Bracket Assembly, a collaboration camera, cables, and power supply.
Dimensions & Weight DetailsMain system - Width 36.8 cm Depth 4.4 cm Height 38.1 cm ¦ Console - Width 22.7 cm Depth 32.4 cm Height 10.4 cm Weight 2.5 kg ¦ Camera - Width 4.1 cm Depth 7.2 cm Height 3.6 cm Weight 120 g
Features12 megapixels, noise reduction, auto gain control, 150° diagonal field of view, 120° field of view (horizontal), 90° field of view (vertical), 1/2.3 CMOS image sensor type, aspherical glass lens, automatic lossless digital zoom
Video Output
TypeCodec board
Audio Input
Type360° quad array microphone - integrated
Audio Output
TypeSpeaker(s)
Audio AmplifierIntegrated
Output Power / Channel11 Watt
Frequency Response90 - 22000 Hz
Input Device
Type7" touchscreen
Networking
TypeNetwork adapter
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet
Network / Transport ProtocolDHCP, TCP/IP, UDP/IP, SFTP
FeaturesPassword protection, dual display support, XiO Cloud service support, auto-switching, SSH support, auto-negotiation, auto-discovery, full duplex mode, half duplex mode, DHCP support, TCP support, UDP support, CIP support, TLS decryption, 802.1x authentication, SRTP support, Limes Audio TrueVoice acoustic echo cancellation, auto mic mixing, automatic gain control (AGC), dynamic noise reduction
Compliant StandardsIEEE 802.1x, IEEE 1329 Type 1
Expansion / Connectivity
Interfaces1 x network - Ethernet 10Base-T/100Base-TX - RJ-45 ¦ 1 x USB 2.0 - Micro-USB Type B
Miscellaneous
Cables Included1 x USB-C to USB-A cable - 1.8 m ¦ 2 x HDMI cable - 1.8 m ¦ 1 x network cable - 3.66 m ¦ 1 x HDMI cable - 6.1 m ¦ 1 x USB type A to micro-USB type B cable - 1.8 m ¦ 2 x network cable - 6 m ¦ 1 x DisplayPort-HDMI cable - 1.8 m ¦ 1 x network cable - 2.1 m
