MAINTENANCE BY-PASS IEC OUTLET COMPATIBLE WITH OLS 6-10KVA ERT
Manufacture#: MBP60AHVIEC82U
Checking delivery…
Product details
Power distribution unit (rack-mountable)
AC 220-240 V
output connectors: 9 (terminal block, 4 x IEC 60320 C19, 4 x IEC 60320 C13)
2U
Payment options available at checkout
Main features

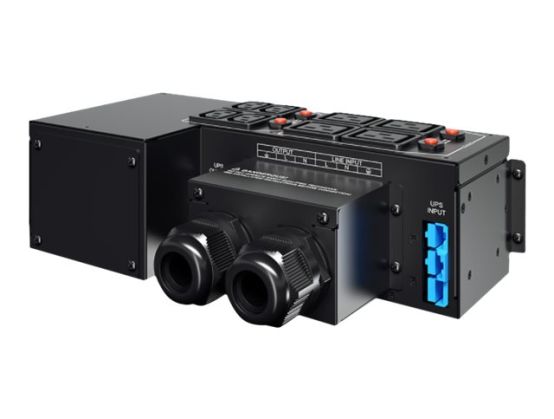

CyberPower Maintenance Bypass PDU MBP60AHVIEC82U
Power distribution unit (rack-mountable)
AC 220-240 V
output connectors: 9 (terminal block, 4 x IEC 60320 C19, 4 x IEC 60320 C13)
2U
black
for External Battery Module Series BPSE240V75; Smart App Online S OLS10000, OLS6000
Overview
CyberPower MBP60AHVIEC82U can be attached to UPS for maintenance purpose. It can seamlessly switch power from UPS to utility supply during UPS maintenance. The MBP has extra outlets to connect to more devices, and it supports flexible installation to meet different space requirement.
Product Description
CyberPower Maintenance Bypass PDU MBP60AHVIEC82U - power distribution unit
Device Type
Power distribution unit - rack-mountable
Rack Size
2U
Weight
2.8 kg
Input Voltage
AC 220-240 V
Output connectors
4 x power IEC 60320 C19 ¦ 4 x power IEC 60320 C13 ¦ 1 x terminal block
Colour
Black
Dimensions (WxDxH)
28.8 cm x 14.1 cm x 8.8 cm
Manufacturer Warranty
2-year warranty
Designed For
External Battery Module Series BPSE240V75ART3U, BPSE240V75ART3UOA; Smart App Online S OLS10000ERT6UM, OLS6000ERT6UM
General
Device Type
Power distribution unit - rack-mountable
Height (Rack Units)
2U
Colour
Black
Power Device
Input Voltage
AC 220-240 V
Power Output Connectors Details
4 x power IEC 60320 C19 ¦ 4 x power IEC 60320 C13 ¦ 1 x terminal block
Max Electric Current
60 A
Battery
Transfer Time
0 ms
Miscellaneous
Cables Included
2 x management / power cable
Rack Mounting Kit
Included
Features
Metal housing, built-in bypass switch, cascadable
Compliant Standards
RoHS
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 90% (non-condensing)
Dimensions & Weight
Width
28.8 cm
Depth
14.1 cm
Height
8.8 cm
Weight
2.8 kg
Dimensions & Weight (Shipping)
Shipping Width
32.9 cm
Shipping Depth
22.9 cm
Shipping Height
12.5 cm
Shipping Weight
3.89 kg
Compatibility Information
Designed For
CyberPower External Battery Module Series BPSE240V75ART3U, BPSE240V75ART3UOA ¦ CyberPower Smart App Online S OLS10000ERT6UM, OLS6000ERT6UM
