A battery data link transmits the unit's diagnostic vitals to the UPS display for real-time monitoring; the heavy gauge power cord, adapted with Plug-and-Play DC connectors, permits the battery pack to be easily "hot-swapped", ensuring continuous operation of critical systems during normal UPS maintenance. Rugged, industrial-grade metal construction - meeting the same standards as the UPS models - allows for installation in demanding environments.
Form factor - 2U configuration supports both rack and tower mounting
Metal housing - rigid metal construction allows for placement in demanding environment
Power on/off switch - local power switch for manual reset and control
Back-panel fuse- replaceable fuse is accessible from the rear panel

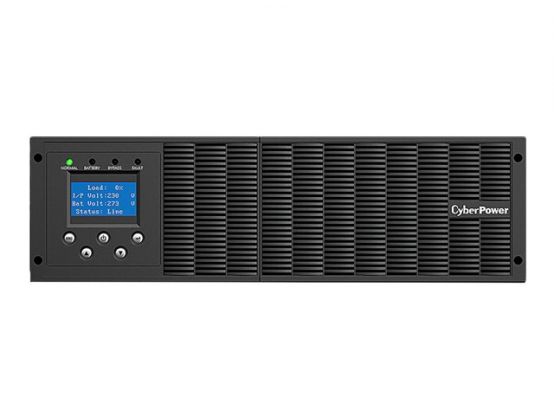

Product DescriptionCyberPower Online Series OLS6000ERTXL3U - UPS - 5400 Watt - 6000 VA
Device TypeUPS - active Power Factor Correction (PFC) - rack-mountable / external
Rack Size3U
Weight17.5 kg
Input Wiring1-phase
Input VoltageAC 230 V
Output VoltageAC 208/220/230/240 V ± 1%
Power Capacity5400 Watt / 6000 VA
Input Connectors1 x terminal block
Output connectors1 x terminal block
BatteryExpandable
NetworkingRS-232, USB
Included AccessoriesScrews, terminal cover, terminal splices, parallel port cover plate
ColourBlack
Dimensions (WxDxH)43.8 cm x 68 cm x 13.05 cm
Manufacturer Warranty2-year warranty
Extended Specification
General
Device TypeUPS - active Power Factor Correction (PFC) - rack-mountable / external
Height (Rack Units)3U
ColourBlack
Power Device
UPS TechnologyOn-line
Input VoltageAC 230 V
Input Voltage RangeAC 110 - 276 V
Frequency Provided50/60 Hz ± 0.1%
Input Wiring1-phase
Frequency Required50/60 Hz
Input Connectors1 x terminal block
Power Output Connectors Details1 x terminal block
Output VoltageAC 208/220/230/240 V ± 1% - 50/60 Hz
Power Capacity5400 Watt / 6000 VA
Output WaveformSinewave
Surge SuppressionYes
Surge Energy Rating445 Joules
Circuit ProtectionFuse, circuit breaker, electronic current limit
Efficiency96% Eco mode
Battery
TypeExpandable
Run Time (Up To)10 min at at 105 - 125% load (line mode) ¦ 1 min at at 125 - 150% load (line mode) ¦ 10 sec at at 150 - 170% load (line mode) ¦ 1 sec at more then 170% load (line mode) ¦ 2 min at at 105 - 125% load (battery mode) ¦ 30 sec at at 125 - 150% load (battery mode) ¦ 1 sec at more then 150% load (battery mode) ¦ 1 min at at 125 - 150% load (bypass mode) ¦ 10 sec at at 150 - 170% load (bypass mode) ¦ 1 sec at more then 170% load (bypass mode)
Transfer Time0 ms
Networking
Remote Management InterfaceRS-232, USB
Expansion / Connectivity
Interfaces1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ Expansion
Expansion Slots1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Included AccessoriesScrews, terminal cover, terminal splices, parallel port cover plate
Cables IncludedUSB cable - external
Rack Mounting KitIncluded
Equipment Protection Value100000 Euros
FeaturesHID compatible, audible alarm, LCD display, overheat protection, built-in maintenance bypass, LED indicators, overcharge protection, over current protection, overload protection, Smart Battery Management (SMB), Eco-Mode, PFC function, generator compatible, double conversion, zero transfer time, fault alarm, internal current limiting
Compliant StandardsRoHS
Software / System Requirements
Software IncludedPowerPanel Business Edition
Manufacturer Warranty
Service & SupportLimited warranty - 2 years ¦ Limited warranty - batteries - 2 years
