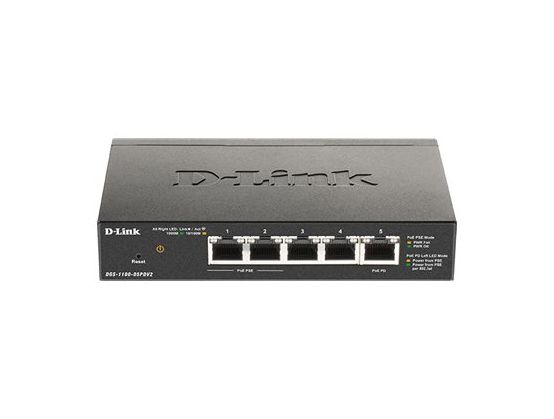

Name: D-Link DGS 1100-05PDV2 - Switch - smart - 5 x 10/100/1000 (2 PoE) - desktop - PoE (18 W)
Brand: D-LINK
SKU: 1TNETNHS-028592
Price: 52.2 GBP
Availability: OutOfStock

Overview

Main features

D-Link DGS 1100-05PDV2
Switch
smart
5 x 10/100/1000 (2 PoE)
desktop
PoE (18 W)

Overview

The DGS-1100 Series is a range of switches designed to meet the requirements of small, medium, and enterprise businesses. Support for multiple PoE standards make the DGS-1100 Series ideal for IP surveillance deployments. Advanced management features, a range of diagnostic and troubleshooting tools, and energy-efficient technologies provide a flexible solution to meet your networking requirements.

Specification

Product Description D-Link DGS 1100-05PDV2 - switch - 5 ports - smart

Device Type Switch - 5 ports - smart

Subtype Gigabit Ethernet

Ports 5 x 10/100/1000 (2 PoE)

Power Over Ethernet (PoE) PoE

PoE Budget 18 W

Performance Switching capacity: 10 Gbps ¦ Forwarding performance: 7.44 Mpps

Capacity VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128

MAC Address Table Size 2K entries

Routing Protocol IGMPv2, IGMP, IGMPv3

Remote Management Protocol SNMP 2, ICMP

Features Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DSCP support, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN, 1Mbit packet buffer

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Dimensions (WxDxH) 15 cm x 9.7 cm x 2.8 cm

Weight 840 g

General

Device Type Switch - 5 ports - smart

Enclosure Type Desktop

Subtype Gigabit Ethernet

Ports 5 x 10/100/1000 (2 PoE)

Power Over Ethernet (PoE) PoE

PoE Budget 18 W

Performance Switching capacity: 10 Gbps ¦ Forwarding performance: 7.44 Mpps

Capacity VLAN groups: 128 ¦ VLAN IDs: 4094 ¦ IGMP groups: 128

MAC Address Table Size 2K entries

Routing Protocol IGMPv2, IGMP, IGMPv3

Remote Management Protocol SNMP 2, ICMP

Encryption Algorithm SSL

Features Flow control, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, Broadcast Storm Control, full duplex mode, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, QoS, Cable Diagnostics Function, bandwidth control, fanless, LLDP support, Port Security, DHCP client, tagged VLAN, DSCP support, IGMP querier, Voice VLAN, VLAN management, VLAN group, EEE, WRR, HOL Blocking Prevention, loopback detection, port-based VLAN, port-based QoS, Unknown Storm Control, DNA support, Asymmetric VLAN, 1Mbit packet buffer

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az

Flash Memory 2 MB

Status Indicators Status, link/activity/speed, PoE, power

Expansion / Connectivity

Interfaces 5 x 1000Base-T RJ-45 2 ports (PoE) / 1 port Power Delivery

Power

Power Consumption Operational 3.24 Watt

Power Consumption Stand by 1.728 Watt

Miscellaneous

MTBF 2,357,475 hours

Compliant Standards FCC Class A certified, C-Tick, BSMI, cUL, CB, CCC, RoHS, LVD, VCCI Class A

Software / System Requirements

Software Included D-Link Network Assistant

Dimensions & Weight

Width 15 cm

Depth 9.7 cm

Height 2.8 cm

Weight 840 g

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 0 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 0 - 95% (non-condensing)
