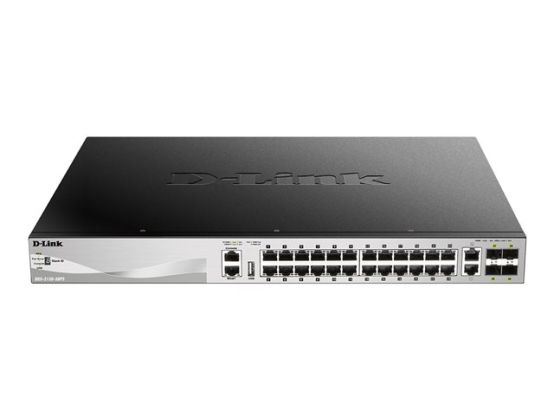

Name: D-Link DGS 3130-30PS - Switch - L3 Lite - Managed - 24 x 10/100/1000 (PoE) + 2 x 10 Gigabit Ethernet + 4 x 10 Gigabit SFP+ - PoE (370 W)
Brand: D-LINK
SKU: 1TNETNHS-028941
Price: 1047.55 GBP
Availability: OutOfStock

Overview

Main features

D-Link DGS 3130-30PS
Switch
L3 Lite
Managed
24 x 10/100/1000 (PoE) + 2 x 10 Gigabit Ethernet + 4 x 10 Gigabit SFP+
PoE (370 W)

Overview

The DGS-3130 Series switches are Lite Layer 3 Stackable Managed Switches designed to connect end-users in a secure enterprise or metro Ethernet access network. These switches support multicast, and enhanced security, making them an ideal Gigabit access layer solution.

Specification

Product Description D-Link DGS 3130-30PS - switch - 30 ports - Managed

Device Type Switch - 30 ports - L3 Lite - Managed - stackable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 (PoE) + 2 x 10 Gigabit Ethernet + 4 x 10 Gigabit SFP+

Power Over Ethernet (PoE) PoE

PoE Budget 370 W

Performance Switching capacity: 168 Gbps ¦ Forwarding performance (64-byte packet size): 125 Mpps

Capacity Packet buffer size: 2 MB ¦ Units per virtual stack: up to 32 ¦ IGMP groups: 1024 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues: 8

MAC Address Table Size 16384 entries

Jumbo Frame Support 9KB

Routing Protocol IGMP, IGMPv2, IGMPv3, MLD, MLDv2, VRRP, static IPv4 routing, static IPv6 routing, RIP-1, RIP-2, RIPng

Remote Management Protocol SSH-2, CLI, Telnet, TFTP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, NTP

Features 3 fans, SIM, flow control, HOL Blocking Prevention, MSTP support, RSTP support, STP support, BPDU Filter, Root Restriction, loopback detection, port mirroring, ERPS, IGMP snooping, VLAN Double Tagging (Q-in-Q), MLD snooping, QoS, SP, WRR, bandwidth control, ACL support, Port Security, DHCP snooping, AAA, WAC, EEE, Cable Diagnostics Function, Telnet client, Telnet server, DNS client, system log, sFlow, LLDP support, BOOTP support, DHCP client, DHCP relay, DHCP server, ICMP, proxy ARP, IGMP filtering, MIB II

Compliant Standards IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at

Power AC 120/230 V (50/60 Hz)

Power Redundancy Optional

Dimensions (WxDxH) 44 cm x 35 cm x 4.4 cm

Weight 4.66 kg

General

Device Type Switch - 30 ports - L3 Lite - Managed - stackable

Subtype Gigabit Ethernet

Ports 24 x 10/100/1000 (PoE) + 2 x 10 Gigabit Ethernet + 4 x 10 Gigabit SFP+

Power Over Ethernet (PoE) PoE

PoE Budget 370 W

Performance Switching capacity: 168 Gbps ¦ Forwarding performance (64-byte packet size): 125 Mpps

Capacity Packet buffer size: 2 MB ¦ Units per virtual stack: up to 32 ¦ IGMP groups: 1024 ¦ Virtual interfaces (VLANs): 4000 ¦ QoS hardware queues: 8

MAC Address Table Size 16384 entries

Jumbo Frame Support 9KB

Max Units In A Stack 12

Routing Protocol IGMP, IGMPv2, IGMPv3, MLD, MLDv2, VRRP, static IPv4 routing, static IPv6 routing, RIP-1, RIP-2, RIPng

Remote Management Protocol SSH-2, CLI, Telnet, TFTP, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 2, RMON 3, RMON 9, NTP

Encryption Algorithm SSL, SSL 2.0, SSL 3.0

Authentication Method Secure Shell v.2 (SSH2)

Features 3 fans, SIM, flow control, HOL Blocking Prevention, MSTP support, RSTP support, STP support, BPDU Filter, Root Restriction, loopback detection, port mirroring, ERPS, IGMP snooping, VLAN Double Tagging (Q-in-Q), MLD snooping, QoS, SP, WRR, bandwidth control, ACL support, Port Security, DHCP snooping, AAA, WAC, EEE, Cable Diagnostics Function, Telnet client, Telnet server, DNS client, system log, sFlow, LLDP support, BOOTP support, DHCP client, DHCP relay, DHCP server, ICMP, proxy ARP, IGMP filtering, MIB II

Compliant Standards IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1p, IEEE 802.1x, IEEE 802.3az, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at

Expansion / Connectivity

Interfaces 24 x 1000Base-T RJ-45 ¦ 2 x 10GBase-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x 10/100/1000 Base-T RJ-45 console ¦ 1 x 10/100/1000 Base-T RJ-45 management ¦ 1 x USB 2.0 Type A

Power

Power Device Internal power supply - hot-plug

Power Redundancy Optional

Voltage Required AC 120/230 V (50/60 Hz)

Power Consumption Operational 471.67 Watt

Miscellaneous

MTBF 409,054 hours

Compliant Standards FCC Class A certified, VCCI Class A, IC, RCM, BSMI, CCC, CB, cUL

Software / System Requirements

Software Included Standard Image (SI) Software

Dimensions & Weight

Width 44 cm

Depth 35 cm

Height 4.4 cm

Weight 4.66 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 10 - 90%

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 90%
