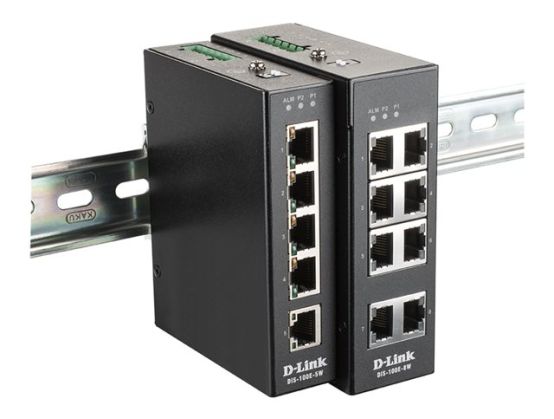

The DIS-100E Series Industrial Fast Ethernet Unmanaged Switches are designed specifically to withstand wide temperature range, vibrations and shock. These rugged, yet easy to deploy, switches have superior environmental specification compared to those of commercial network switches. With its hardened design combined with high availability network features, these switches form vital parts of any network infrastructure facilitating the increasing demand for smart cities, city-wide surveillance and wireless connectivity. DIS-100E Series Unmanaged Switches provides 5 and 8 Fast Ethernet ports and are designed for supporting standard industrial applications without complex setup to make the network truly plug-and-play.
FeaturesFanless, store and forward, full duplex mode, half duplex mode, built-in DIP switch, broadcast storm protection, MDI/MDI-X switch, auto-negotiation
Compliant StandardsIEEE 802.3x
PowerDC 12 - 58 V
Dimensions (WxDxH)11.78 cm x 3.9 cm x 9.69 cm
Weight405 g
Manufacturer Warranty5-year warranty
Extended Specification
General
Device TypeSwitch - 8 ports - unmanaged
Enclosure TypeDIN rail mountable, wall-mountable
SubtypeFast Ethernet
Ports8 x 10/100
MAC Address Table Size1K entries
FeaturesFanless, store and forward, full duplex mode, half duplex mode, built-in DIP switch, broadcast storm protection, MDI/MDI-X switch, auto-negotiation
Compliant StandardsIEEE 802.3x
Status IndicatorsStatus, link/speed
Expansion / Connectivity
Interfaces8 x 100Base-TX RJ-45
Power
Power DeviceInternal power supply
Voltage RequiredDC 12 - 58 V
Power Consumption Operational1.64 Watt
Power Consumption Stand by1.41 Watt
Miscellaneous
MTBF25 years
Compliant StandardsEMC, IEC 60068-2-6, IEC 60068-2-27, IEC 60068-2-32, UL 60950-1, FCC, RoHS, FCC Part 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, WEEE, IP30
