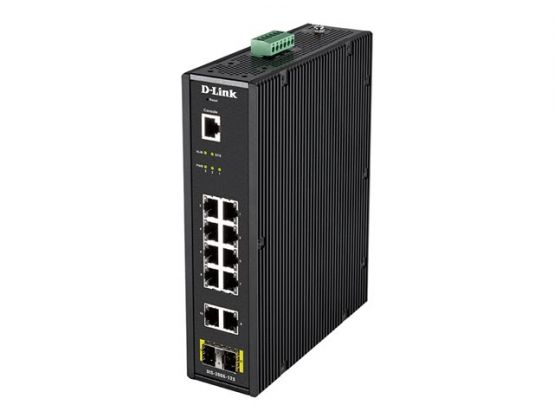

Name: D-Link DIS 200G-12S - Switch - Managed - 10 x 10/100/1000 + 2 x SFP - DIN rail mountable, wall-mountable - AC 120/230 V / DC 46 - 54 V
Brand: D-LINK
SKU: 1TNETNHS-028963
Price: 430.68 GBP
Availability: OutOfStock

Overview

Main features

D-Link DIS 200G-12S
Switch
Managed
10 x 10/100/1000 + 2 x SFP
DIN rail mountable, wall-mountable
AC 120/230 V / DC 46
54 V

Overview

The DIS-200G-12S Layer 2 Industrial Managed Switch is equipped with 10 10/100/1000BASE-T ports and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G-12S furthermore integrates advanced management and security functions to provide a complete solution.

Specification

Product Description D-Link DIS 200G-12S - switch - 10 ports - Managed

Device Type Switch - 10 ports - Managed

Subtype Gigabit Ethernet

Ports 10 x 10/100/1000 + 2 x SFP

Performance Switching capacity: 24 Gbps ¦ Throughput (64-byte packet size): 17.85 Mpps

MAC Address Table Size 8K entries

Jumbo Frame Support 9216 bytes

Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD

Remote Management Protocol Telnet, CLI

Features Flow control, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, SNTP support, STP support, RSTP support, MSTP support, QoS, MLD snooping, Safeguard Engine, reset button, Cable Diagnostics Function, IPv4 support, fanless, LLDP support, LACP, Port Security, SNMP trap, DHCP client, 512KB packet buffer, GVRP, dual firmware images, SP, tagged VLAN, TFTP client, 802.1x authentication, ERPS, DDM, AAA, WAC, EEE, WRR, HOL Blocking Prevention, loopback detection

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az

Power AC 120/230 V / DC 46 - 54 V (50/60 Hz)

Dimensions (WxDxH) 21 cm x 17.12 cm x 4.8 cm

Weight 2.5 kg

General

Device Type Switch - 10 ports - Managed

Enclosure Type DIN rail mountable, wall-mountable

Subtype Gigabit Ethernet

Ports 10 x 10/100/1000 + 2 x SFP

Performance Switching capacity: 24 Gbps ¦ Throughput (64-byte packet size): 17.85 Mpps

MAC Address Table Size 8K entries

Jumbo Frame Support 9216 bytes

Routing Protocol IGMPv2, IGMP, IGMPv3, MLDv2, MLD

Remote Management Protocol Telnet, CLI

Encryption Algorithm SSL

Authentication Method RADIUS

Features Flow control, ARP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, SNTP support, STP support, RSTP support, MSTP support, QoS, MLD snooping, Safeguard Engine, reset button, Cable Diagnostics Function, IPv4 support, fanless, LLDP support, LACP, Port Security, SNMP trap, DHCP client, 512KB packet buffer, GVRP, dual firmware images, SP, tagged VLAN, TFTP client, 802.1x authentication, ERPS, DDM, AAA, WAC, EEE, WRR, HOL Blocking Prevention, loopback detection

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az

RAM 128 MB

Flash Memory 32 MB

Status Indicators Status

Expansion / Connectivity

Interfaces 10 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45

Power

Voltage Required AC 120/230 V / DC 46 - 54 V (50/60 Hz)

Power Consumption Operational 10.26 Watt

Miscellaneous

Included Accessories DIN-rail mounting kit, wall mounting kit

Cables Included 1 x console cable

MTBF 276 773 hours

Compliant Standards UL, C-Tick, BSMI, IEC 61000-4-5, FCC, IP30

Software / System Requirements

Software Included Drivers & Utilities

Dimensions & Weight

Width 21 cm

Depth 17.12 cm

Height 4.8 cm

Weight 2.5 kg

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 65 °C

Humidity Range Operating 0 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 85 °C

Humidity Range Storage 0 - 95% (non-condensing)
