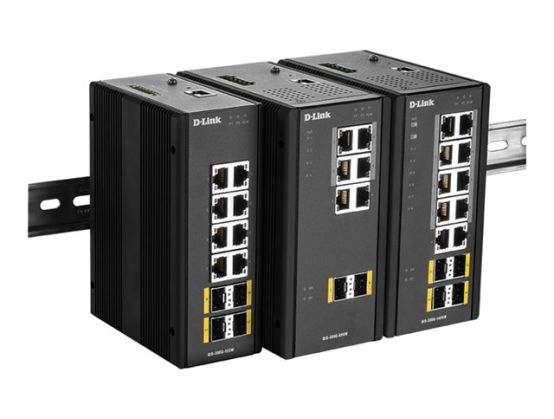

Name: D-Link DIS 300G-12SW - Switch - Managed - 8 x 10/100/1000 + 4 x 100/1000 SFP - DIN rail mountable, wall-mountable
Brand: D-LINK
SKU: 1TNETNHS-028964
Price: 826.92 GBP
Availability: OutOfStock

Overview

Main features

D-Link DIS 300G-12SW
Switch
Managed
8 x 10/100/1000 + 4 x 100/1000 SFP
DIN rail mountable, wall-mountable

Overview

Featuring user management interfaces, the DIS-300G is easy to manage and provides the security and controls to guard and shape your network needs.

Specification

Product Description D-Link DIS 300G-12SW - switch - 8 ports - Managed

Device Type Switch - 8 ports - Managed

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 + 4 x 100/1000 SFP

Capacity VLANs supported: 256 ¦ IGMP multicast groups: up to 255 ¦ Queues per port: 8

MAC Address Table Size 8K entries

Jumbo Frame Support 9KB

Routing Protocol IGMP, IGMPv2

Remote Management Protocol SNMP 1, SNMP 2c, SNMP 3, Telnet, HTTPS, SSH, NTP

Features Rugged, fanless, auto-negotiation, auto-uplink (auto MDI/MDI-X), STP support, RSTP support, MSTP support, full duplex mode, half duplex mode, VLAN Double Tagging (Q-in-Q), IGMP querier, IGMP snooping, QoS, SPQ, WRR, traffic shaping, AAA, Broadcast Storm Control, Multicast Storm Control, Flooding Storm Control, Syslog support, DDM, DHCP client, DHCP relay, DHCP server, DHCP snooping, SNTP support

Compliant Standards IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1x

Dimensions (WxDxH) 6.1 cm x 15.4 cm x 10.9 cm

Weight 1.086 kg

Manufacturer Warranty 5-year warranty

General

Device Type Switch - 8 ports - Managed

Enclosure Type DIN rail mountable, wall-mountable

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 + 4 x 100/1000 SFP

Capacity VLANs supported: 256 ¦ IGMP multicast groups: up to 255 ¦ Queues per port: 8

MAC Address Table Size 8K entries

Jumbo Frame Support 9KB

Routing Protocol IGMP, IGMPv2

Remote Management Protocol SNMP 1, SNMP 2c, SNMP 3, Telnet, HTTPS, SSH, NTP

Authentication Method RADIUS, TACACS+

Features Rugged, fanless, auto-negotiation, auto-uplink (auto MDI/MDI-X), STP support, RSTP support, MSTP support, full duplex mode, half duplex mode, VLAN Double Tagging (Q-in-Q), IGMP querier, IGMP snooping, QoS, SPQ, WRR, traffic shaping, AAA, Broadcast Storm Control, Multicast Storm Control, Flooding Storm Control, Syslog support, DDM, DHCP client, DHCP relay, DHCP server, DHCP snooping, SNTP support

Compliant Standards IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1p, IEEE 802.1x

Status Indicators Power, alarm, link/speed

Expansion / Connectivity

Interfaces 8 x 1000Base-T RJ-45 ¦ 4 x 1000Base-X SFP

Miscellaneous

MTBF 25 years

Compliant Standards IP30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 60950-1, FCC Part 15, EN 61000-6-2, EN 61000-6-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, RoHS, WEEE

Dimensions & Weight

Width 6.1 cm

Depth 15.4 cm

Height 10.9 cm

Weight 1.086 kg

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature -40 °C

Max Operating Temperature 70 °C

Humidity Range Operating 5 - 95%

Min Storage Temperature -40 °C

Max Storage Temperature 85 °C

Humidity Range Storage 5 - 95%
