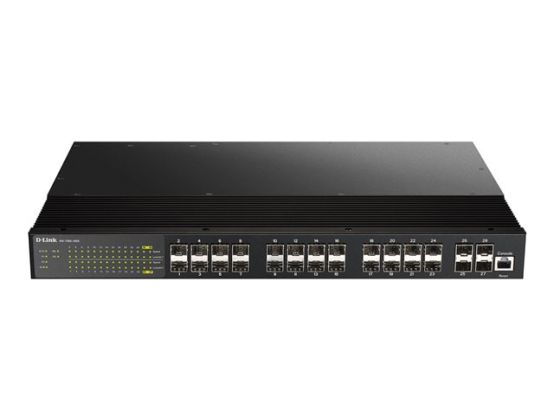

Name: D-Link DIS 700G-28XS - Switch - L2+ - Managed - 24 x Gigabit SFP + 4 x 10 Gigabit SFP+ - rack-mountable
Brand: D-LINK
SKU: 1TNETRNE-007987
Price: 3743.64 GBP
Availability: OutOfStock

Overview

Main features

D-Link DIS 700G-28XS
Switch
L2+
Managed
24 x Gigabit SFP + 4 x 10 Gigabit SFP+
rack-mountable

Overview

For the core of your network, the DIS-700G features user management interfaces and provides diagnostics, security and controls to shape your managed network needs.

Specification

Product Description D-Link DIS 700G-28XS - switch - 24 ports - Managed - rack-mountable

Device Type Switch - 24 ports - L2+ - Managed

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 24 x Gigabit SFP + 4 x 10 Gigabit SFP+

Capacity VLANs supported: 2048 ¦ IGMP multicast groups: up to 512 ¦ Queues per port: 8

MAC Address Table Size 8K entries

Jumbo Frame Support 9KB

Routing Protocol IGMP, IGMPv2, IGMPv3

Remote Management Protocol CLI, SNMP 1, SNMP 2c, SNMP 3, Telnet, HTTPS, SSH, TFTP, NTP

Features High Availability, Advanced QoS, ACL support, store and forward, STP support, MSTP support, RSTP support, flow control, VLAN Double Tagging (Q-in-Q), MVR, IGMP querier, IGMP snooping, DSCP support, ToS, SPQ, WRR, traffic shaping, Broadcast Storm Control, Multicast Storm Control, Flooding Storm Control, Syslog support, SNTP support

Compliant Standards IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1v, IEEE 802.1ad, IEEE 802.1x

Power AC 120/230 V (50 - 60 Hz)

Dimensions (WxDxH) 44 cm x 4.4 cm x 31.85 cm

Weight 4.5 kg

Manufacturer Warranty 5-year warranty

General

Device Type Switch - 24 ports - L2+ - Managed

Enclosure Type Rack-mountable

Subtype Gigabit Ethernet

Ports 24 x Gigabit SFP + 4 x 10 Gigabit SFP+

Capacity VLANs supported: 2048 ¦ IGMP multicast groups: up to 512 ¦ Queues per port: 8

MAC Address Table Size 8K entries

Jumbo Frame Support 9KB

Routing Protocol IGMP, IGMPv2, IGMPv3

Remote Management Protocol CLI, SNMP 1, SNMP 2c, SNMP 3, Telnet, HTTPS, SSH, TFTP, NTP

Authentication Method RADIUS

Features High Availability, Advanced QoS, ACL support, store and forward, STP support, MSTP support, RSTP support, flow control, VLAN Double Tagging (Q-in-Q), MVR, IGMP querier, IGMP snooping, DSCP support, ToS, SPQ, WRR, traffic shaping, Broadcast Storm Control, Multicast Storm Control, Flooding Storm Control, Syslog support, SNTP support

Compliant Standards IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1Q, IEEE 802.1v, IEEE 802.1ad, IEEE 802.1x

Status Indicators Power, link/speed

Expansion / Connectivity

Interfaces 24 x 1000Base-X SFP ¦ 4 x 10GBase-X SFP+

Power

Power Device Internal power supply

Max Supported Qty 1

Voltage Required AC 120/230 V (50 - 60 Hz)

Power Consumption Operational 35 Watt

Miscellaneous

MTBF 25 years

Compliant Standards IP30, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL, FCC, UL 61010-1, EN 61000-6-2, EN 61000-6-4, CISPR 22, EN 55022 Class A, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, RoHS, WEEE

Dimensions & Weight

Width 44 cm

Depth 4.4 cm

Height 31.85 cm

Weight 4.5 kg

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature -10 °C

Max Operating Temperature 65 °C

Humidity Range Operating 5 - 95%

Min Storage Temperature -40 °C

Max Storage Temperature 85 °C

Humidity Range Storage 5 - 95%
