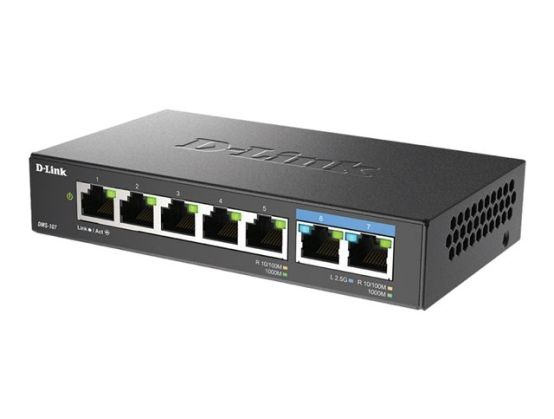

D-Link DMS-107 - Switch - unmanaged - 5 x 10/100/1000 + 2 x 2.5GBase-T - desktop, wall-mountable
Checking delivery…
Product details
Switch
unmanaged
5 x 10/100/1000 + 2 x 2.5GBase-T
desktop, wall-mountable
Payment options available at checkout
Main features
D-Link DMS 107
Switch
unmanaged
5 x 10/100/1000 + 2 x 2.5GBase-T
desktop, wall-mountable
Overview
The DMS-107 is a multi-Gigabit Ethernet Plug-and-Play switch that provides ultrafast connectivity to your network core or network-attached storage (NAS) device. You can easily connect multiple computers within minutes, and start sharing an Internet connection, files, music, and video across your small office or home network.
Product Description
D-Link DMS 107 - switch - 7 ports - unmanaged
Device Type
Switch - 7 ports - unmanaged
Subtype
Gigabit Ethernet
Ports
5 x 10/100/1000 + 2 x 2.5GBase-T
Performance
Switching capacity: 20 Gbps ¦ Packet forwarding rate: 14.88 Mpps
Capacity
Packet buffer size: 2 MB
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Features
Flow control, auto-uplink (auto MDI/MDI-X), store and forward, Link Fault Detection, QoS, D-Link Green Technology, fanless, metal housing, EEE, auto firmware update
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az, IEEE 802.3bz
Dimensions (WxDxH)
14.5 cm x 8.2 cm x 2.8 cm
Weight
295.2 g
Localisation
United Kingdom
Manufacturer Warranty
2-year warranty
General
Device Type
Switch - 7 ports - unmanaged
Enclosure Type
Desktop, wall-mountable
Subtype
Gigabit Ethernet
Ports
5 x 10/100/1000 + 2 x 2.5GBase-T
Performance
Switching capacity: 20 Gbps ¦ Packet forwarding rate: 14.88 Mpps
Capacity
Packet buffer size: 2 MB
MAC Address Table Size
2K entries
Jumbo Frame Support
9216 bytes
Features
Flow control, auto-uplink (auto MDI/MDI-X), store and forward, Link Fault Detection, QoS, D-Link Green Technology, fanless, metal housing, EEE, auto firmware update
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az, IEEE 802.3bz
Status Indicators
Power, link/activity
Expansion / Connectivity
Interfaces
5 x 10/100/1000 Base-T RJ-45 ¦ 2 x 10/100/1000/2.5G RJ-45
Power
Power Device
External power adapter
Power Provided
DC 12 V - 0.5 A
Miscellaneous
MTBF
944,277.78 hours
Compliant Standards
Plug and Play, FCC Class B certified, IC Class B, BSMI, RoHS, BSMI Class B, LVD, VCCI Class B, RCM Class B
Localisation
United Kingdom
Dimensions & Weight
Width
14.5 cm
Depth
8.2 cm
Height
2.8 cm
Weight
295.2 g
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% RH
Min Storage Temperature
-10 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 95% RH
