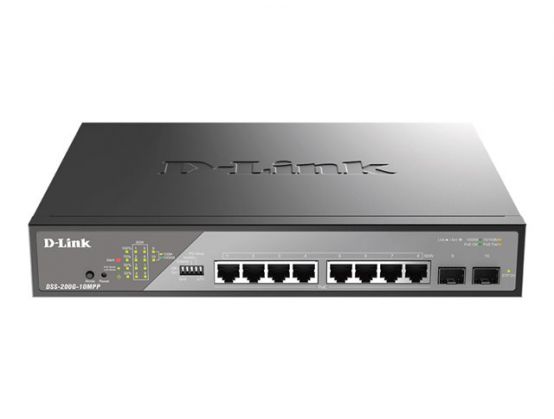

Name: D-Link DSS 200G-10MPP - Switch - Managed - 8 x 10/100/1000 (PoE++) + 2 x Gigabit SFP - rack-mountable - PoE++ (242 W)
Brand: D-LINK
SKU: 1TNETNHS-052935
Price: 243.78 GBP
Availability: InStock

Overview

Main features

D-Link DSS 200G-10MPP
Switch
Managed
8 x 10/100/1000 (PoE++) + 2 x Gigabit SFP
rack-mountable
PoE++ (242 W)

Overview

The DSS-200G series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses. Support for high-powered Pan Tilt Zoom (PTZ) cameras, automatic Surveillance VLAN, and 6 kV surge protection make the DSS-200G series ideal for IP surveillance deployments. A redesigned interface, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your surveillance requirements.

Specification

Product Description D-Link DSS 200G-10MPP - switch - 8 ports - Managed - rack-mountable

Device Type Switch - 8 ports - Managed

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE++) + 2 x Gigabit SFP

Power Over Ethernet (PoE) PoE++

PoE Budget 242 W

Performance Switching capacity: 20 Gbps ¦ Forwarding rate: 14.88 Mbps

Capacity Packet buffer size: 4.1 Mbit ¦ VLAN groups: 128 ¦ IGMP snooping groups: 64 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ Queues per port: 4

MAC Address Table Size 8K entries

Jumbo Frame Support 10240 bytes

Routing Protocol IGMPv2, IGMP, RSTP, STP

Remote Management Protocol SNMP, DHCP, IPv4, IPv6, RSTP, MIB

Features Flow control, auto-negotiation, BOOTP support, IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Quality of Service (QoS), static IP mode, Cable Diagnostics Function, LLDP support, Management Information Base (MIB), built-in DIP switch, tagged VLAN, ONVIF support, Ethernet Ring Protection Switching (ERPS), Storm Control, 6KV Surge protection, Management Information Base (MIB) II, rate limit, 1 fan, Voice VLAN, Private MIB, Weighted Round Robin (WRR), loopback detection, port-based VLAN, Unknown Storm Control, isolate mode, Asymmetric VLAN, Media Dependent Interface (MDI), Media Dependent Interface Crossover (MDI-X), Smart Fan, Auto Surveillance VLAN, PD-Alive

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt

Power AC 100-240 V (50/60 Hz)

Dimensions (WxDxH) 28 cm x 23 cm x 4.4 cm

Weight 2.05 kg

Localisation United Kingdom

Manufacturer Warranty Limited lifetime warranty

General

Device Type Switch - 8 ports - Managed

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE++) + 2 x Gigabit SFP

Power Over Ethernet (PoE) PoE++

PoE Budget 242 W

Performance Switching capacity: 20 Gbps ¦ Forwarding rate: 14.88 Mbps

Capacity Packet buffer size: 4.1 Mbit ¦ VLAN groups: 128 ¦ IGMP snooping groups: 64 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ Queues per port: 4

MAC Address Table Size 8K entries

Jumbo Frame Support 10240 bytes

Routing Protocol IGMPv2, IGMP, RSTP, STP

Remote Management Protocol SNMP, DHCP, IPv4, IPv6, RSTP, MIB

Encryption Algorithm SSL

Features Flow control, auto-negotiation, BOOTP support, IGMP snooping, port mirroring, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Quality of Service (QoS), static IP mode, Cable Diagnostics Function, LLDP support, Management Information Base (MIB), built-in DIP switch, tagged VLAN, ONVIF support, Ethernet Ring Protection Switching (ERPS), Storm Control, 6KV Surge protection, Management Information Base (MIB) II, rate limit, 1 fan, Voice VLAN, Private MIB, Weighted Round Robin (WRR), loopback detection, port-based VLAN, Unknown Storm Control, isolate mode, Asymmetric VLAN, Media Dependent Interface (MDI), Media Dependent Interface Crossover (MDI-X), Smart Fan, Auto Surveillance VLAN, PD-Alive

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt

RAM 128 MB DDR3 SDRAM

Flash Memory 32 MB

Status Indicators Power, alarm, link/activity/speed

Expansion / Connectivity

Interfaces 8 x 10/100/1000 Base-T RJ-45 PoE++ - 90 W ¦ 2 x 1000Base-T SFP

Power

Power Device Internal power supply

Installed Qty 1

Voltage Required AC 100-240 V (50/60 Hz)

Power Consumption Stand by 10.7 Watt

Miscellaneous

Rack Mounting Kit Included

MTBF 508,112 hours

Compliant Standards UL, BSMI, cUL, CB, FCC, LVD, BMSI, RFC1213, RFC1493, RFC768, RFC791, NDAA, RFC792, RFC793, RFC826, RFC2236, RFC1907, RFC1215, RFC2233, RFC2665, RFC4363, RFC951, RFC1542

Localisation United Kingdom

Dimensions & Weight

Width 28 cm

Depth 23 cm

Height 4.4 cm

Weight 2.05 kg

Manufacturer Warranty

Service & Support Limited warranty - lifetime

Environmental Parameters

Min Operating Temperature -5 °C

Max Operating Temperature 50 °C

Humidity Range Operating 0 - 95% (non-condensing)

Min Storage Temperature -40 °C

Max Storage Temperature 70 °C

Humidity Range Storage 0 - 95% (non-condensing)
