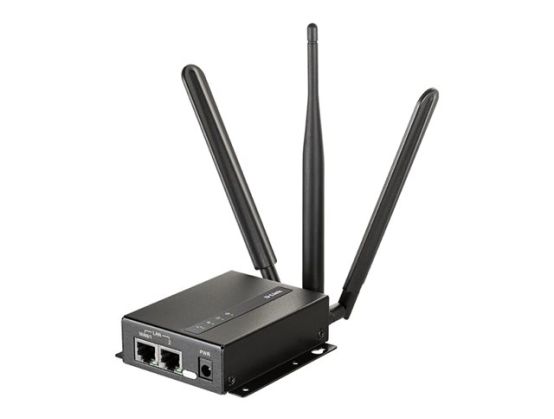

D-Link DWM-313 - Wireless router - WWAN 2-port switch 2.4 GHz - 3G, 4G - wall-mountable
Checking delivery…
Product details
- Wireless router
- WWAN 2-port switch 2.4 GHz
- 3G, 4G
- wall-mountable
Payment options available at checkout
Main features
- D-Link DWM-313
- Wireless router
- WWAN 2-port switch 2.4 GHz
- 3G, 4G
- wall-mountable
Overview
Easy-to-use, high-performance, industrial-grade 4G/3G mobile router for Machine-to-Machine applications in any environment.
Product Description
D-Link DWM-313 - wireless router - WWAN - Wi-Fi - 3G, 4G - wall-mountable
Device Type
Wireless router - wireless cellular modem - 2-port switch (integrated)
Enclosure Type
Wall-mountable
Mobile Communication Protocol
LTE, UMTS, GSM, GPRS, EDGE, FDD LTE, TDD LTE, HSPA, HSUPA, DC-HSDPA, WCDMA
Generation
3G, 4G
WAN Ports Qty
1
Data Link Protocol
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Band
2.4 GHz
Network / Transport Protocol
IPSec, PPTP, L2TP, HTTP
Routing Protocol
GRE
Remote Management Protocol
SNMP, TR-069
Features
NAT support, SPI, VPN support, OpenVPN client, M2M
Compliant Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3i, IEEE 802.3u
Power
DC 5 -18 V
Dimensions (WxDxH)
9.3 cm x 7 cm x 2.36 cm
Weight
210 g
Manufacturer Warranty
2-year warranty
General
Device Type
Wireless router - 2-port switch (integrated)
Enclosure Type
Wall-mountable
Connectivity Technology
Wired, wireless
Data Link Protocol
Ethernet, Fast Ethernet, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Frequency Band
2.4 GHz
Network / Transport Protocol
IPSec, PPTP, L2TP, HTTP
Routing Protocol
GRE
Remote Management Protocol
SNMP, TR-069
Encryption Algorithm
128-bit AES, 64-bit WEP, 128-bit WEP
Features
NAT support, SPI, VPN support, OpenVPN client, M2M
Compliant Standards
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3i, IEEE 802.3u
Status Indicators
Status
Communications
Type
Wireless cellular modem
Mobile Communication Protocol
LTE, UMTS, GSM, GPRS, EDGE, FDD LTE, TDD LTE, HSPA, HSUPA, DC-HSDPA, WCDMA
Generation
3G, 4G
Max Transfer Rate
150 Mbps
Expansion / Connectivity
Interfaces
WAN / LAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ LAN: 1 x 10Base-T/100Base-TX - RJ-45 ¦ USB: 1 x RS-232
Expansion Slots
2 (total) / 2 (free) x Micro-SIM ¦ 1 (total) / 1 (free) x microSD
Aerial
Aerial
External detachable
Antenna Qty
3
Configuration Details
2 detachable external LTE aerials, 1 detachable WiFi aerial
Power
Power Device
External power adapter
Installed Qty
1
Voltage Required
DC 5 -18 V
Dimensions & Weight
Width
9.3 cm
Depth
7 cm
Height
2.36 cm
Weight
210 g
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
-30 °C
Max Operating Temperature
60 °C
Humidity Range Operating
10 - 90% (non-condensing)
