Name: 10-Port Gigabit Smart Switch with 2 SFP ports
Brand: D-LINK
SKU: 1TNETNHS-028602
Price: 119.03 GBP
Availability: InStock

Overview

Main features

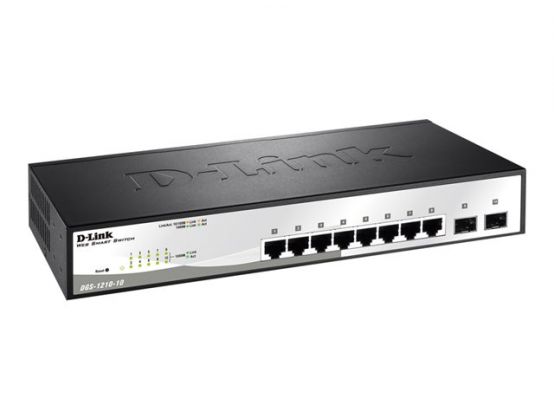

D-Link Smart+ DGS-1210-10
Switch
Managed
8 x 10/100/1000 + 2 x SFP
desktop, rack-mountable

Overview

The DGS-1210-10/10P/20/28 features a fanless design that allows for quieter operation and helps to extend the device's lifetime. While the DGS-1210-28P/52/52P feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance.

Specification

Product Description D-Link Smart+ DGS-1210-10 - switch - 8 ports - Managed - rack-mountable

Device Type Switch - 8 ports - Managed

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 + 2 x SFP

Performance Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps

Capacity IGMP groups: 256 ¦ QoS hardware queues per port: 8 ¦ ACL rules: 768 ¦ ARP entries: 64

MAC Address Table Size 16K entries

Jumbo Frame Support 9216 bytes

Remote Management Protocol SNMP 1, SNMP 3, CLI, HTTP, SNMP 2c, Telnet, RMON 1

Features Store and forward, 1.5MB packet buffer, auto-uplink (auto MDI/MDI-X), full duplex capability, auto-negotiation, flow control, IGMP snooping, MLD snooping, port mirroring, STP support, RSTP support, bandwidth control, VLAN support, WRR queuing, ToS, QoS, DSCP support, IPv6 support, ACL support, IP-MAC binding, DAI, DHCP snooping, 802.1x authentication, BOOTP support, DHCP client, CoS, TFTP support, firmware upgradable, SNMP trap, SNTP support, Port Security, D-Link Green Technology, SPQ, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Cable Diagnostics Function, Multicast filtering function, Syslog support, Safeguard Engine

Compliant Standards IEEE 802.3az, IEEE 802.3x, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3af

Power AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) 12.6 cm x 28 cm x 4.4 cm

Weight 1.54 kg

General

Device Type Switch - 8 ports - Managed

Enclosure Type Desktop, rack-mountable 1U

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 + 2 x SFP

Performance Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps

Capacity IGMP groups: 256 ¦ QoS hardware queues per port: 8 ¦ ACL rules: 768 ¦ ARP entries: 64

MAC Address Table Size 16K entries

Jumbo Frame Support 9216 bytes

Remote Management Protocol SNMP 1, SNMP 3, CLI, HTTP, SNMP 2c, Telnet, RMON 1

Encryption Algorithm TLS, TTLS, PEAP, MD5, SSL 2.0, SSL, SSL 3.0

Authentication Method RADIUS, Extensible Authentication Protocol (EAP), Secure Shell v.2 (SSH2)

Features Store and forward, 1.5MB packet buffer, auto-uplink (auto MDI/MDI-X), full duplex capability, auto-negotiation, flow control, IGMP snooping, MLD snooping, port mirroring, STP support, RSTP support, bandwidth control, VLAN support, WRR queuing, ToS, QoS, DSCP support, IPv6 support, ACL support, IP-MAC binding, DAI, DHCP snooping, 802.1x authentication, BOOTP support, DHCP client, CoS, TFTP support, firmware upgradable, SNMP trap, SNTP support, Port Security, D-Link Green Technology, SPQ, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Cable Diagnostics Function, Multicast filtering function, Syslog support, Safeguard Engine

Compliant Standards IEEE 802.3az, IEEE 802.3x, IEEE 802.1x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.3af

Status Indicators Link/activity, port transmission speed, power

Expansion / Connectivity

Interfaces 8 x 1000Base-T RJ-45 ¦ 2 x SFP

Power

Power Device Internal power supply

Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

MTBF 360,844 hours

Compliant Standards cUL, LVD, VCCI Class A, FCC Class A certified, BSMI, C-Tick, CCC

Dimensions & Weight

Width 12.6 cm

Depth 28 cm

Height 4.4 cm

Weight 1.54 kg

Environmental Parameters

Min Operating Temperature -5 °C

Max Operating Temperature 50 °C

Humidity Range Operating 0 - 95% (non-condensing)

Min Storage Temperature -20 °C

Max Storage Temperature 70 °C

Humidity Range Storage 0 - 95% (non-condensing)
