Name: PoE Switch 8xGbit 2xCombo
Brand: D-LINK
SKU: 1TNETNHS-028601
Price: 100.26 GBP
Availability: InStock

Overview

Main features

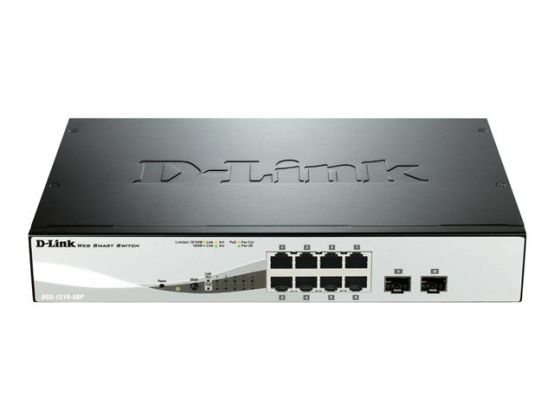

D-Link Web Smart DGS-1210-08P
Switch
Managed
8 x 10/100/1000 (PoE) + 2 x Gigabit SFP
desktop, rack-mountable
PoE (45 W)

Overview

The DGS-1210 Series Gigabit Smart Managed Switches with Fibre Uplinks is the latest generation of D-Link Smart Managed Switches featuring high port density and optional PoE support. With D-Link Green 3.0 technology, the series offers a high level of energy saving and efficiency, as well as compliance with IEEE 802.3az Energy Efficient Ethernet standard.

Specification

Product Description D-Link Web Smart DGS-1210-08P - switch - 8 ports - Managed - rack-mountable

Device Type Switch - 8 ports - Managed

Enclosure Type Rack-mountable 1U

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP

Power Over Ethernet (PoE) PoE

PoE Budget 45 W

Performance Switching capacity: 20 Gbps ¦ Forwarding performance: 14.9 Mpps

MAC Address Table Size 16K entries

Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI

Features Flow control, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, ACL support, QoS, Safeguard Engine, reset button, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, LLDP support, LACP, DHCP client, Energy Efficient Ethernet

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x

Power AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) 28 cm x 18 cm x 4.4 cm

Weight 1.23 kg

General

Device Type Switch - 8 ports - Managed

Enclosure Type Desktop, rack-mountable 1U

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE) + 2 x Gigabit SFP

Power Over Ethernet (PoE) PoE

PoE Budget 45 W

Performance Switching capacity: 20 Gbps ¦ Forwarding performance: 14.9 Mpps

MAC Address Table Size 16K entries

Remote Management Protocol SNMP 1, SNMP 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI

Features Flow control, Layer 2 switching, auto-negotiation, BOOTP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, Broadcast Storm Control, IPv6 support, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, ACL support, QoS, Safeguard Engine, reset button, Cable Diagnostics Function, bandwidth control, D-Link Green Technology, fanless, LLDP support, LACP, DHCP client, Energy Efficient Ethernet

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x

Status Indicators Port transmission speed, power, PoE, link/activity

Expansion / Connectivity

Interfaces 8 x 1000Base-T RJ-45 PoE - 15.4 W ¦ 2 x SFP (mini-GBIC)

Power

Power Device External power adapter

Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

Compliant Standards FCC Class A certified, C-Tick, BSMI, cUL, ICES-003, VCCI Class A

Dimensions & Weight

Width 28 cm

Depth 18 cm

Height 4.4 cm

Weight 1.23 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 0 - 95%

Min Storage Temperature -20 °C

Max Storage Temperature 70 °C

Humidity Range Storage 0 - 95%
