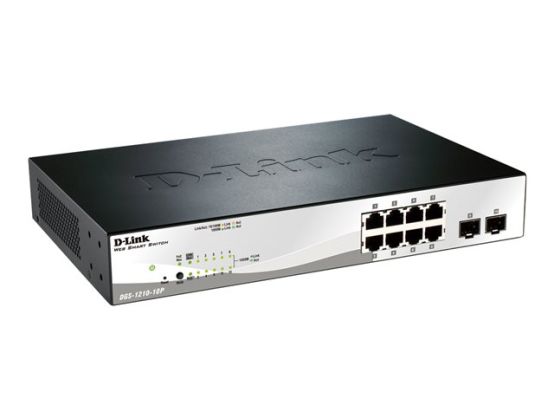

Name: D-Link 10-port 10/100/1000 Gigabit PoE Smart Switch including 2 Combo 1000BaseT/SFP
Brand: D-LINK
SKU: 1TNETNHS-028604
Price: 109.57 GBP
Availability: InStock

Overview

Main features

D-Link Web Smart DGS-1210-10P
Switch
Managed
8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
desktop
PoE+ (78 W)

Overview

The DGS-1210-10/10P/20/28 features a fanless design that allows for quieter operation and helps to extend the device's lifetime. While the DGS-1210-28P/52/52P feature a smart fan design that powers on after the switch reaches a certain temperature, saving energy and cutting costs without sacrificing performance.

Specification

Product Description D-Link Web Smart DGS-1210-10P - switch - 10 ports - Managed

Device Type Switch - 10 ports - Managed

Enclosure Type 1U

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP

Power Over Ethernet (PoE) PoE+

PoE Budget 78 W

MAC Address Table Size 8K entries

Remote Management Protocol SNMP 1, SNMP 2, Telnet, HTTP, TFTP

Features Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, ACL support, QoS, DHCP server, Safeguard Engine

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at

Power AC 120/230 V (50/60 Hz)

Dimensions (WxDxH) 33 cm x 18 cm x 4.4 cm

Weight 1.84 kg

General

Device Type Switch - 10 ports - Managed

Enclosure Type Desktop 1U

Subtype Gigabit Ethernet

Ports 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP

Power Over Ethernet (PoE) PoE+

PoE Budget 78 W

MAC Address Table Size 8K entries

Remote Management Protocol SNMP 1, SNMP 2, Telnet, HTTP, TFTP

Authentication Method RADIUS

Features Flow control, full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, BOOTP support, RARP support, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, WRR queuing, store and forward, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, STP support, ACL support, QoS, DHCP server, Safeguard Engine

Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3at

RAM 512 KB

Built-in Devices Led panel

Status Indicators Port transmission speed, power, link OK, link/activity

Expansion / Connectivity

Interfaces 8 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP

Power

Power Device External power adapter

Voltage Required AC 120/230 V (50/60 Hz)

Miscellaneous

MTBF 205,249 hours

Compliant Standards FCC Class A certified, C-Tick, cUL, VCCI Class A ITE, IC Class A

Dimensions & Weight

Width 33 cm

Depth 18 cm

Height 4.4 cm

Weight 1.84 kg

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Humidity Range Operating 10 - 95%
