15IN RES STD VDC 12-48V INT ANT+UPS 4GB/240GB (SSD) SUMMIT
£2933 .43
£3520.12 inc VAT
Checking delivery…
Product details
Rugged
vehicle mount computer
Intel Atom
E3826
Payment options available at checkout
Main features
Datalogic Blackline SH15
Rugged
vehicle mount computer
Intel Atom
E3826
Win 10 IoT Enterprise
4 GB RAM
240 GB SSD
15" touchscreen 1024 x 768
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, Bluetooth 4.0 -
Overview

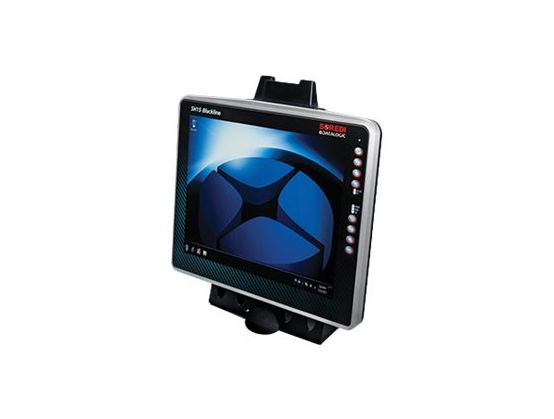

The SH15 Blackline computer is a rugged vehicle mount computer (VMC) as well as a fixed mount unit for use in most any industrial application. A sealed design tested to IP65/IP67 ensures operation for both computers in the toughest environments. The capacitive touchscreen features a 3 mm anti-glare armored glass which can be used even when wearing gloves.
Product Description
Datalogic Blackline SH15 - 15" - Intel Atom - E3826 - 4 GB RAM - 240 GB SSD
Product Type
Vehicle mount computer - rugged
Operating System
Win 10 IoT Enterprise
Processor
Intel Atom E3826 / 1.46 GHz
Memory
4 GB
Storage
240 GB SSD
Display
15" LED backlight touchscreen 1024 x 768 / XGA
Input Device
4 function keys
Networking
802.11a/b/g/n, Bluetooth 4.0, Gigabit Ethernet
Dimensions (WxDxH)
38 cm x 30.5 cm x 6.7 cm
Weight
6.5 kg
Manufacturer Warranty
Limited warranty - 1 year
General
Product Type
Vehicle mount computer - rugged
Operating System
Windows 10 IoT Enterprise
Processor / Chipset
CPU
Intel Atom E3826 / 1.46 GHz
Number of Cores
Dual-Core
64-bit Computing
Yes
Storage
Main Storage
240 GB SSD
Display
Type
15"
LCD Backlight Technology
LED backlight
Touchscreen
Yes (multi-touch)
Resolution
1024 x 768 (XGA)
Widescreen
No
Image Brightness
400 cd/m²
Features
Anti-glare, resistive touch screen
Input
Type
4 function keys
Communications
Wireless
802.11a/b/g/n, Bluetooth 4.0
Wireless Controller
Summit SDC-PE15N
Network Interface
Gigabit Ethernet
AC Adapter
Output
DC 12 - 48 V
Connections & Expansion
Slots
1 x CFast Card (1 free) ¦ 1 x SDHC Memory Card (1 free) ¦ 1 x PCI Express Mini Card
Interfaces Details
3 x USB 2.0 ¦ USB 3.0 ¦ 2 x serial ¦ LAN ¦ HDMI
Memory Card Reader
Yes (SDHC Card)
Miscellaneous
Case Material
Aluminum
Features
Moisture resistant, anti-vibration, shock-resistant, capacitive touch screen, impact-resistant, dustproof, aluminium coated
Included Accessories
UPS Battery Backup with Speaker
Compliant Standards
FCC, RoHS, CCX V4, IP67, IP65
Dimensions & Weight
Dimensions (WxDxH)
38 cm x 30.5 cm x 6.7 cm
Weight
6.5 kg
Sustainability Information
TCO Certified
-
Manufacturer Warranty
Service & Support
Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature
-20 °C
Max Operating Temperature
55 °C
Humidity Range Operating
10 - 90% (non-condensing)
