DATALOGIC

DSM0400 2D MP-DL RS-232 2 M CABLE

Name: DSM0400 2D MP-DL RS-232 2 M CABLE
Brand: DATALOGIC
SKU: 1TCPTOPR-012908
Price: 353.11 GBP
Availability: OutOfStock

SKU

1TCPTOPR-012908

Manufacture#: DSM0452-DL

Be the first to review this product

£294.26

£353.11 inc VAT

Order by 15:00 and receive your order on Friday 16 May

Product details

Barcode scanner
desktop
decoded
RS-232

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

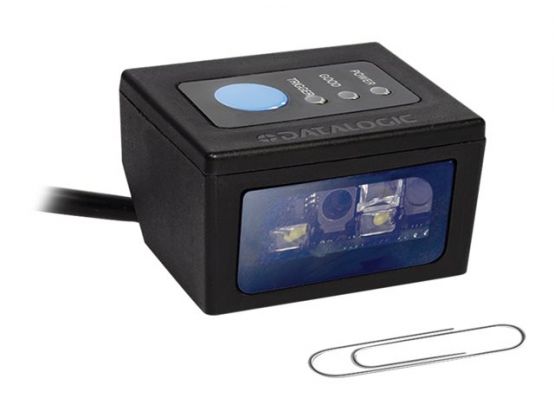

Datalogic DSM0452-DL Fixed Scan Module
Barcode scanner
desktop
decoded
RS-232

Overview

The DSM04XX Fixed Scan Module is the solution you need for high-performance fixed position scanning in a compact form factor.

Specification

Product Description Datalogic DSM0452-DL Fixed Scan Module - barcode scanner

Type Barcode scanner - desktop - stationary - RS-232 - decoded

Colour Black

Minimum Bar Width 2 mil

Scan Element Type Visible laser diode

Sensor Resolution 1280 x 960

Connectivity Technology Wired

System Requirements Linux, Microsoft Windows, Android

Dimensions (WxDxH) 4.7 cm x 2.7 cm x 3.8 cm

Weight 155 g

Manufacturer Warranty 3-year warranty

General

Type Barcode scanner - desktop - stationary

Colour Black

Barcode

Interface Type RS-232

Minimum Bar Width 2 mil

Scan Element Type Visible laser diode

Sensor Resolution 1280 x 960

Light Source Wave Length 650 nm

Scan Mode Fixed projection

Skew (Degrees) 60

Pitch (Degrees) 60

Print Contrast Signal (PCS) 25%

Decode Capability Pharmacode 39, EAN/JAN, Code 93, Matrix 2 of 5, Industrial 2 of 5, Code 39, IATA, QR code, MaxiCode, Aztec code, Telepen, BC 412, MicroPDF417, Codabar, Code 128, Code 11, Code 2 of 5, UPC, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, PLANET, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, Korea Post, Trioptic Code, MacroPDF417, Royal Mail, Micro QR code, CC-A, CC-B, CC-C, GS1 DataBar Omnidirectional, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, GS1 DataBar Limited, Standard 2 of 5, GS1 DataBar Composites, GS1 DataBar Stacked, China Han Xin Code, Intelligent Mail Barcode, EAN-128, RSS-14, Datalogic 2 of 5, UPC-A / E, UPC/EAN/JAN Composites

TTL Decoding Decoded

Connectivity Technology Wired

OK Notification Beeper, LED indicator

Features Image capturing, Green Spot technology, white LEDs illumination

Expansion / Connectivity

Interfaces RS-232

Miscellaneous

Compliant Standards IP54, China RoHS, IEC 60825 Class 2, EU RoHS

Power

Electric Current Required 50 mA (standby), 246 mA (operating)

System Requirements

OS Required Linux, Microsoft Windows, Android

Dimensions & Weight

Width 4.7 cm

Depth 2.7 cm

Height 3.8 cm

Weight 155 g

Manufacturer Warranty

Service & Support Limited warranty - 3 years

Environmental Parameters

Min Operating Temperature -20 °C

Max Operating Temperature 50 °C

Humidity Range Operating 5 - 95% (non-condensing)

Drop Specification 1 m to concrete
