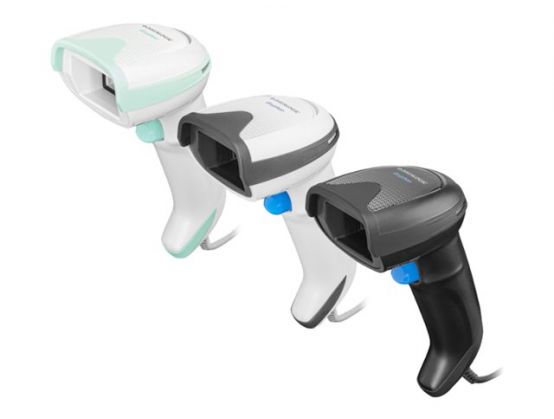

GRYPHON I GD4590 2D MPIXEL IMG USB/RS232/WEDGE MI WT IN

Name: GRYPHON I GD4590 2D MPIXEL IMG USB/RS232/WEDGE MI WT IN
Brand: DATALOGIC
SKU: 1TCPTOPR-014604
Price: 212.75 GBP
Availability: InStock

SKU

1TCPTOPR-014604

Manufacture#: GD4590-WH

Be the first to review this product

£177.29

£212.75 inc VAT

Checking delivery…

Product details

Barcode scanner
handheld
2D imager
decoded

View full product specification

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Datalogic Gryphon I GD4590
Barcode scanner
handheld
2D imager
decoded
keyboard wedge, RS-232, USB

Overview

The Gryphon 4500 series is a premium range of handheld scanners from Datalogic for general purpose applications. Designed with people in mind, the Gryphon I GD4500 imager stands out with an elegant and trendy design, unchallenged ergonomics and features outstanding performance.

Specification

Product Description Datalogic Gryphon I GD4590 - barcode scanner

Type Barcode scanner - handheld - keyboard wedge, RS-232, USB - decoded

Colour White

Image Colour Disclaimer The displayed product image may be a different colour

Scan Element Type 2D imager

Sensor Resolution 1280 x 800

Connectivity Technology Wired

Power DC 4.5 -14 V

Dimensions (WxDxH) 6.8 cm x 10.9 cm x 16.6 cm

Weight 161 g

Manufacturer Warranty 5-year warranty

General

Type Barcode scanner - handheld

Colour White

Image Colour Disclaimer The displayed product image may be a different colour

Barcode

Interface Type Keyboard wedge, RS-232, USB

Scan Element Type 2D imager

Sensor Resolution 1280 x 800

Light Source Wave Length 650 nm

Skew (Degrees) 65

Pitch (Degrees) 65

Print Contrast Signal (PCS) 15%

Decode Capability GS1 DataBar Composites, Aztec code, China Han Xin Code, Data Matrix, MaxiCode, Micro QR code, Australian Post, British Post, China Post, Japanese Post, Kix (Netherlands) Post, PLANET, Postnet, Royal Mail, RM4SCC, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, MacroPDF417, MicroPDF417, PDF417, UPC A Composite, UPC E Composite

TTL Decoding Decoded

Connectivity Technology Wired

OK Notification Beeper, LED indicator

Features Green Spot technology, Datalogic Three Green Lights (3GL), Direct Part Mark (DPM), Digimarc Barcode Technology, ESD (electrostatic discharge) safe

Expansion / Connectivity

Interfaces 1 x USB ¦ 1 x keyboard wedge ¦ 1 x RS-232

Miscellaneous

Compliant Standards RoHS, IP52

Power

Voltage DC 4.5 -14 V

Dimensions & Weight

Width 6.8 cm

Depth 10.9 cm

Height 16.6 cm

Weight 161 g

Manufacturer Warranty

Service & Support Limited warranty - 5 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 50 °C

Humidity Range Operating 0 - 95% (non-condensing)

Drop Specification 1.8 m to concrete
