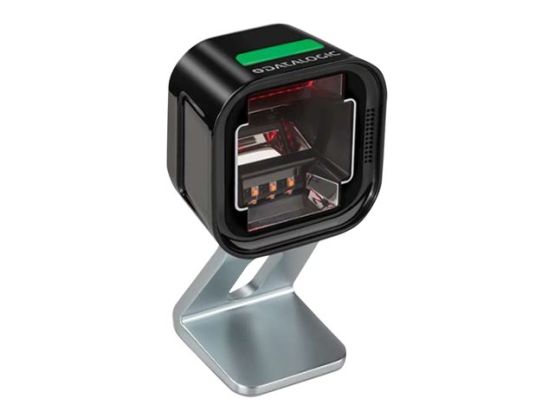

The Magellan 1500i is a high performance presentation scanner from Datalogic for a variety of applications including retail point of sale, pharmacy and customer service.
TypeBarcode scanner - desktop - stationary - USB - decoded
ColourBlack
Minimum Bar Width5 mil
Sensor Resolution1280 x 800
Connectivity TechnologyWired
System RequirementsWindows 10 IoT Enterprise 64-bit Edition Retail, Microsoft Windows 7 Professional (32/64 bits), Windows 10 Pro 64-bit Edition, Windows 8.1 Pro 64-bit Edition, Windows Embedded 8.1 Industry Pro 64-bit Edition, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Embedded POSReady 7 32-bit, Microsoft Windows Embedded POSReady 7 64-bit, CentOS 6.0, CentOS 6.0 (64-bit), CentOS 7.0, CentOS 7.0 (64-bit), Red Hat Linux, Ubuntu 14.04 LTS, Ubuntu 14.04 LTS (64-bit)
Dimensions (WxDxH)6 cm x 7.5 cm x 15 cm
Weight240 g
Extended Specification
General
TypeBarcode scanner - desktop - stationary
ColourBlack
Barcode
Interface TypeUSB
Minimum Bar Width5 mil
Sensor Resolution1280 x 800
Scan ModeFixed projection
Max Working Distance30 cm
Skew (Degrees)75
Pitch (Degrees)65
Print Contrast Signal (PCS)25%
Decode CapabilityQR code, MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Composites, Australian Post, British Post, Canadian Post, China Post, Intelligent Mail Barcode, Japanese Post, Kix (Netherlands) Post, PLANET, Portuguese Post, Postnet, Royal Mail, Swedish Post, UPC, GS1 DataBar
TTL DecodingDecoded
Connectivity TechnologyWired
FeaturesGreen Spot technology
Expansion / Connectivity
Interfaces1 x USB - Type A
Miscellaneous
Included AccessoriesTall tilting stand
Cables Included1 x USB cable - 2 m
Compliant StandardsIEC 62471
Power
Electric Current Required300 mA (standby), 500 mA (operating)
System Requirements
OS RequiredWindows 10 IoT Enterprise 64-bit Edition Retail, Microsoft Windows 7 Professional (32/64 bits), Windows 10 Pro 64-bit Edition, Windows 8.1 Pro 64-bit Edition, Windows Embedded 8.1 Industry Pro 64-bit Edition, Microsoft Windows Embedded POSReady 2009, Microsoft Windows Embedded POSReady 7 32-bit, Microsoft Windows Embedded POSReady 7 64-bit, CentOS 6.0, CentOS 6.0 (64-bit), CentOS 7.0, CentOS 7.0 (64-bit), Red Hat Linux, Ubuntu 14.04 LTS, Ubuntu 14.04 LTS (64-bit)
