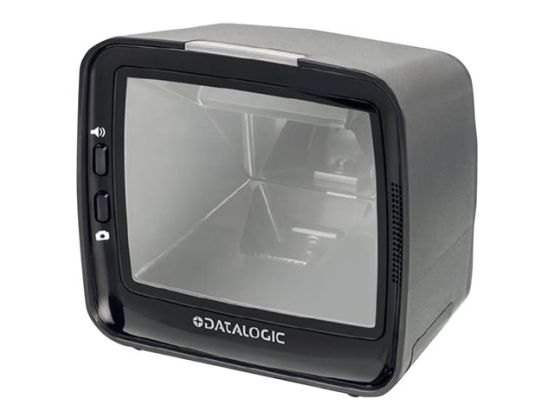

Datalogic Magellan 3450Vsi Presentation - barcode scanner
Checking delivery…
Product details
Barcode scanner
desktop
2D imager
decoded
Payment options available at checkout
Main features
Datalogic Magellan 3450Vsi Presentation
Barcode scanner
desktop
2D imager
decoded
USB
Overview
Used in conjunction with HP Point of Sale Systems, the Datalogic Magellan 3450Vsi Presentation Scanner offers a reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read.
Product Description
Datalogic Magellan 3450Vsi Presentation - barcode scanner
Type
Barcode scanner - desktop - stationary - USB - decoded
Colour
Black
Minimum Bar Width
5 mil
Scan Field Width
0 cm - 20.3 cm
Scan Element Type
2D imager - LED
Sensor Resolution
1280 x 1024
Connectivity Technology
Wired
Power
AC 120/230 V (50 Hz)
System Requirements
Linux, Microsoft Windows
Dimensions (WxDxH)
15.2 cm x 9.4 cm x 13.7 cm
Weight
600 g
Manufacturer Warranty
3-year warranty
General
Type
Barcode scanner - desktop - stationary
Colour
Black
Barcode
Interface Type
USB
Minimum Bar Width
5 mil
Scan Field Width
0 cm - 20.3 cm
Scan Element Type
2D imager - LED
Sensor Resolution
1280 x 1024
Scan Mode
Fixed projection
Skew (Degrees)
75
Pitch (Degrees)
65
Print Contrast Signal (PCS)
25%
Decode Capability
MaxiCode, Aztec code, MicroPDF417, PDF417, Data Matrix, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Expanded Stacked, GS1 DataBar Composites, GS1 DataBar Stacked
TTL Decoding
Decoded
Connectivity Technology
Wired
OK Notification
LED indicator
Features
25 kV ESD protection (air discharge)
Expansion / Connectivity
Interfaces
1 x USB - Type A
Miscellaneous
Included Accessories
Mounting kit
Cables Included
1 x USB cable - external - 3.66 m
Compliant Standards
IP52, IEC 62471
Power
Power Device
Power adapter
Voltage
AC 120/230 V (50 Hz)
Power Consumption Operational
3.8 Watt
System Requirements
OS Required
Linux, Microsoft Windows
Dimensions & Weight
Width
15.2 cm
Depth
9.4 cm
Height
13.7 cm
Weight
600 g
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
5 - 95% (non-condensing)
