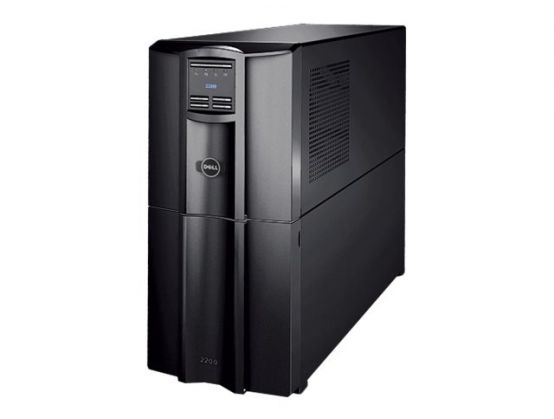

Dell Smart-UPS 2200 - UPS - AC 230 V - 1.98 kW - 2200 VA - RS-232, USB - output connectors: 10 - black - with APC SmartConnect
£1206 .02
£1447.22 inc VAT
Checking delivery…
Product details
UPS
AC 230 V
1.98 kW
2200 VA
Payment options available at checkout
Main features
Dell Smart-UPS 2200
UPS
AC 230 V
1.98 kW
2200 VA
RS-232, USB
output connectors: 10
black
with APC SmartConnect
Overview
In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
Product Description
Dell Smart-UPS 2200 - UPS - 1.98 kW - 2200 VA - with APC SmartConnect
Device Type
UPS - external
Weight
50.9 kg
Input Voltage
AC 230 V
Output Voltage
AC 220/230/240 V ± 5%
Power Capacity
1.98 kW / 2200 VA
Input Connectors
Power IEC 60320 C20, power BS 1363, power CEE 7/7
Output connectors
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Battery
Lead Acid
Batteries Qty
1
Run Time (Up To)
6.7 min at full load
Networking
RS-232, USB
Colour
Black
Dimensions (WxDxH)
19.6 cm x 54.6 cm x 43.2 cm
Manufacturer Warranty
2-year warranty
Bundled with
APC SmartConnect
General
Device Type
UPS - external
Colour
Black
Bundled with
APC SmartConnect
Power Device
UPS Technology
Line interactive
Input Voltage
AC 230 V
Input Voltage Range
AC 160 - 285 V
Input Voltage Range (Adjustable)
AC 151 - 302 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
Power IEC 60320 C20, power BS 1363, power CEE 7/7
Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage
AC 220/230/240 V ± 5% - 50/60 Hz
Power Capacity
1.98 kW / 2200 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Surge Energy Rating
320 Joules
Circuit Protection
Circuit breaker
Battery
Quantity
1
Technology
Lead Acid
Run Time (Up To)
6.7 min at full load ¦ 24.1 min at half load
Recharge Time
3 hours
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B
Expansion Slots
1 (total) / 1 (free) x SmartSlot
Miscellaneous
Cables Included
Serial cable - external ¦ USB cable - external
Features
Audible alarm, Automatic Voltage Regulation (AVR), LED indicators
Compliant Standards
C-Tick, GOST, VDE, EN 50091-2, EN 50091-1
Software / System Requirements
Software Included
Drivers & Utilities
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 95%
Sound Emission
45 dBA
Dimensions & Weight
Width
19.6 cm
Depth
54.6 cm
Height
43.2 cm
Weight
50.9 kg
Dimensions & Weight (Shipping)
Shipping Width
38.1 cm
Shipping Depth
76.2 cm
Shipping Height
55.9 cm
Shipping Weight
60.9 kg
