The AT-DMC1000 series of Gigabit mini media converters feature an extremely small size and can easily fit into the palm of your hand. In addition to being compact - with a small carbon footprint - the DMC1000 series can also be powered with the included Micro USB to USB cable, and plugged directly into a laptop or PC. This saves installation time and cabling as there are no further power requirements necessary.

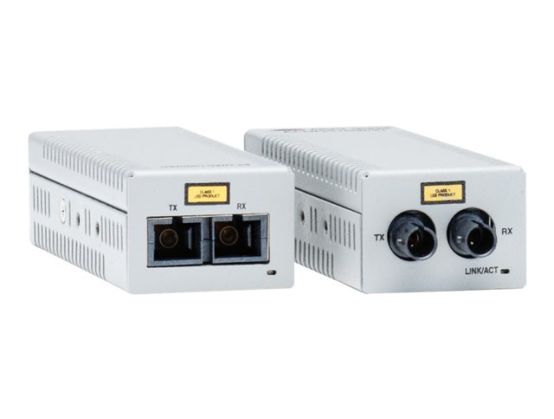

Product DescriptionAllied Telesis AT DMC1000/ST - fibre media converter - 1GbE
Device TypeFibre media converter - RJ-45 / ST multi-mode
Form FactorDesktop
LocalisationEurope
Cabling Type1000Base-SX, 1000Base-T
Data Transfer Rate1 Gbps
Optical Wave Length850 nm
Data Link Protocol1GbE
Max Transfer Distance500 m
Dimensions (WxDxH)3.18 cm x 9.14 cm x 2.16 cm
Weight113 g
Extended Specification
General
Device TypeFibre media converter
Form FactorDesktop
LocalisationEurope
Networking
Connectivity TechnologyWired
Cabling Type1000Base-SX, 1000Base-T
Data Link Protocol1GbE
Data Transfer Rate1 Gbps
Optical Wave Length850 nm
Max Transfer Distance500 m
Status IndicatorsSystem, link/activity
FeaturesAuto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), USB powered, Automatic Link Restoration
Compliant StandardsIEEE 802.1Q
Expansion / Connectivity
Interfaces1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - LC multi-mode female x 2
Miscellaneous
Compliant StandardsFCC Class A certified, VCCI, C-Tick, CISPR 22 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, RoHS, UL 60950-1, EN 60950-1, EN 55022 Class A
