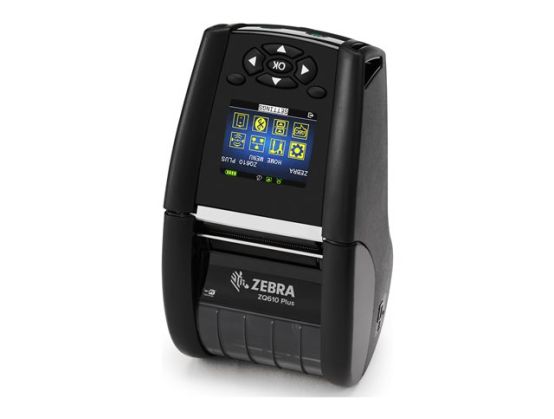

Name: DT PRINTER ZQ610 PLUS 2IN/48MM EN/LAT FONTS BT 4.X LIN. PLATEN
Brand: ZEBRA
SKU: 1TPRNRPR-006988
Price: 717.32 GBP
Availability: OutOfStock

Overview

Main features

Zebra ZQ600 Series ZQ610 Plus
Label printer
direct thermal
Roll (5.54 cm)
203 dpi
up to 115 mm/sec
Bluetooth 4.2 LE, USB 2.0, RS232C

Overview

Improve inventory management, operations, and customer service with the ZQ610 Plus mobile printer. With advanced technology, fast and secure Wi-Fi 6 (802.11ax) and Bluetooth 5.3 wireless connections, an innovative design, a large color display, and superior battery management, including an instant wake-up feature, the ZQ610 Plus boosts associate productivity.

Specification

Product Description Zebra ZQ600 Series ZQ610 Plus - label printer - B/W - direct thermal

Printer Type Label printer - direct thermal - B/W

Form Factor Portable

Weight 600 g

Max Media Size Roll (5.54 cm)

Min Media Size (Custom) 25 mm x 12.7 mm

Max Media Size (Custom) 55.4 mm x 813 mm

Print Speed Up to 115 mm/sec - max speed

Max Resolution (B&W) 203 dpi

Interface Bluetooth 4.2 LE, USB 2.0, RS232C

Processor 400 MHz

RAM Installed (Max) 256 MB

Flash Memory Installed (Max) 512 MB

Language Simulation ZPL, EPL, Comtec Printer Control Language (CPCL), Extensible Mark-up Language (XML), ZBI 2.x

Barcodes Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS

Media Type Die cut labels, tag labels, linerless labels, receipt paper, gap, black mark labels

Fonts Latin fonts, English fonts, CG Triumvirate Bold Condensed

Features Black Mark sensor, gap sensor, label present sensor

Display Resolution 288 x 240

Printer Features XML-enabled printing

Battery Lithium Ion Included Qty 1

Manufacturer Warranty 1-year warranty

Dimensions (WxDxH) 9.14 cm x 17.09 cm x 7.24 cm

General

Printer Type Label printer - direct thermal - monochrome

Printer

Print Speed Up to 115 mm/sec - max speed

Built-in Devices Status LCD

Connectivity Technology Wireless

Interface Bluetooth 4.2 LE, USB 2.0, RS232C

Max Resolution (B&W) 203 dpi

Language Simulation ZPL, EPL, Comtec Printer Control Language (CPCL), Extensible Mark-up Language (XML), ZBI 2.x

Fonts Latin fonts, English fonts, CG Triumvirate Bold Condensed

Features Black Mark sensor, gap sensor, label present sensor

Display Resolution 288 x 240

Fonts Included 25 x bitmapped ¦ 1 x scalable

Barcodes Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS

Printer Features XML-enabled printing

Processor

Processor 400 MHz

RAM

RAM Installed (Max) 256 MB

Flash Memory

Flash Memory 512 MB

Media Handling

Media Type Die cut labels, tag labels, linerless labels, receipt paper, gap, black mark labels

Max Media Size Roll (5.54 cm)

Min Media Size (Custom) 25 mm x 12.7 mm

Max Media Size (Custom) 55.4 mm x 813 mm

Media Sizes Roll (2.5 - 5.54 cm)

Max Printing Width 48 mm

Max Printing Length 813 mm

Media Thickness Range 0.058 mm - 0.165 mm

Roll Maximum Outer Diameter 55.9 mm

Roll Core Diameter 19 mm, 34.9 mm

Media Feeders 1 x manual - 1 roll - Roll (5.54 cm)

Expansion / Connectivity

Connections 1 x USB - mini-USB Type B ¦ 1 x RS-232C

Miscellaneous

Included Accessories Belt clip, shoulder strap

Features Built-in NFC chip, dust-resistant, water-resistant

Compliant Standards IP54, EN 60950, EN55024, EN55022 Class B, FCC Part 15 B, VCCI Class B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, CSA, TUV, IEEE 802.11r

Battery

Type Lithium Ion

Included 1

Capacity 3250 mAh

Software / System Requirements

Software Included Link-OS

Environmental Standards

ENERGY STAR Yes

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 1 year

Environmental Parameters

Min Operating Temperature -20 °C

Max Operating Temperature 50 °C

Humidity Range Operating 10 - 90% (non-condensing)

Dimensions & Weight

Width 9.14 cm

Depth 17.09 cm

Height 7.24 cm

Weight 600 g
