Name: DT PRINTER ZQ630 PLUS EN FONTS BT4.X LINERED PLATEN 0.75IN COR
Brand: ZEBRA
SKU: 1TPRNRPR-006997
Price: 975.25 GBP
Availability: InStock

Overview

Main features

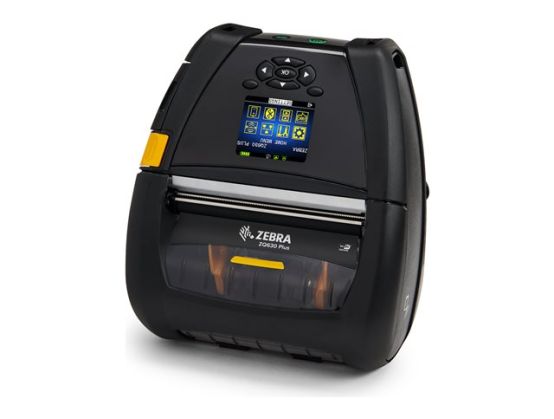

Zebra ZQ600 Series ZQ630 Plus
Label printer
direct thermal
Roll (11.2 cm)
203 dpi
up to 115 mm/sec
Bluetooth 4.2 LE, USB 2.0, RS232C

Overview

Improve your warehouse management and logistics with the ZQ630 Plus mobile printer. Optimized for high-volume label printing but also prints receipts, the ZQ630 Plus mobile printer can be mounted to a forklift for easy access while moving throughout the warehouse.

Specification

Product Description Zebra ZQ600 Series ZQ630 Plus - label printer - B/W - direct thermal

Printer Type Label printer - direct thermal - B/W

Form Factor Portable

Weight 1.1 kg

Max Media Size Roll (11.2 cm)

Min Media Size (Custom) 51 mm x 12.7 mm

Max Media Size (Custom) 112 mm x 813 mm

Print Speed Up to 115 mm/sec - max speed

Max Resolution (B&W) 203 dpi

Interface Bluetooth 4.2 LE, USB 2.0, RS232C

Processor 400 MHz

RAM Installed (Max) 256 MB

Flash Memory Installed (Max) 512 MB

Language Simulation ZPL, EPL, Comtec Printer Control Language (CPCL), ZBI 2.x

Barcodes Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS

Media Type Die cut labels, receipt paper, linerless labels, RFID labels, gap, black mark labels, tag labels

Fonts CG Triumvirate Bold Condensed, English fonts

Features Black Mark sensor, gap sensor, label present sensor

Printer Features XML-enabled printing

Battery Lithium Ion Included Qty 1

Manufacturer Warranty 1-year warranty

Dimensions (WxDxH) 16.51 cm x 18.67 cm x 8.25 cm

General

Printer Type Label printer - direct thermal - monochrome

Printer

Print Speed Up to 115 mm/sec - max speed

Built-in Devices Status LCD

Connectivity Technology Wireless

Interface Bluetooth 4.2 LE, USB 2.0, RS232C

Max Resolution (B&W) 203 dpi

Language Simulation ZPL, EPL, Comtec Printer Control Language (CPCL), ZBI 2.x

Fonts CG Triumvirate Bold Condensed, English fonts

Features Black Mark sensor, gap sensor, label present sensor

Fonts Included 25 x bitmapped ¦ 1 x scalable

Barcodes Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, Data Matrix, FIM, TLC39, Plessey, EAN-8, EAN-13, MSI, RSS

Printer Features XML-enabled printing

Processor

Processor 400 MHz

RAM

RAM Installed (Max) 256 MB

Flash Memory

Flash Memory 512 MB

Media Handling

Media Type Die cut labels, receipt paper, linerless labels, RFID labels, gap, black mark labels, tag labels

Max Media Size Roll (11.2 cm)

Min Media Size (Custom) 51 mm x 12.7 mm

Max Media Size (Custom) 112 mm x 813 mm

Media Sizes Roll (5.1 - 11.2 cm)

Max Printing Width 104 mm

Max Printing Length 813 mm

Media Thickness Range 0.05842 mm - 0.1524 mm

Roll Maximum Outer Diameter 66 mm

Roll Core Diameter 19 mm, 34.9 mm

Media Feeders 1 x manual - 1 roll - Roll (11.2 cm)

Expansion / Connectivity

Connections 1 x USB - mini-USB Type B ¦ 1 x RS-232C

Miscellaneous

Included Accessories Belt clip, shoulder strap

Features Built-in NFC chip, dust-resistant, water-resistant

Compliant Standards IP54, EN 60950, EN55024, EN55022 Class B, FCC Part 15 B, VCCI Class B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, CSA, TUV, IEEE 802.11r, MFI

Battery

Type Lithium Ion

Included 1

Capacity 6600 mAh

Software / System Requirements

Software Included Link-OS

Environmental Standards

ENERGY STAR Yes

Manufacturer Warranty

Service & Support Limited warranty - parts and labour - 1 year

Environmental Parameters

Min Operating Temperature -20 °C

Max Operating Temperature 50 °C

Humidity Range Operating 10 - 90% (non-condensing)

Dimensions & Weight

Width 16.51 cm

Depth 18.67 cm

Height 8.25 cm

Weight 1.1 kg
