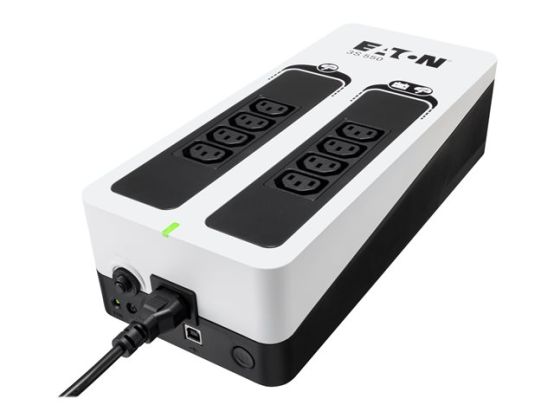

Eaton 3S 550 - UPS - AC 220-240 V - 330 watt - 550 VA - 1-phase - USB - output connectors: 8
Checking delivery…
Product details
UPS
AC 220-240 V
330 Watt
550 VA
Payment options available at checkout
Main features
Eaton 3S 550
UPS
AC 220-240 V
330 Watt
550 VA
1-phase
USB
output connectors: 8
Overview
Eaton 3S provides power and surge protection for desktop computers, wireless networks, gaming consoles, and other critical electronics in your home or business. Attractive design and glossy finish make the 3S a perfect fit for the modern office environment. Compact unit fits on or under your desk or can be mounted on a wall. Easy-to-replace battery helps to extend UPS service life. HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux).
Product Description
Eaton 3S 550 - UPS - 330 Watt - 550 VA
Device Type
UPS - external
Weight
3.2 kg
Input Wiring
1-phase
Input Voltage
AC 220-240 V
Output Voltage
AC 220/230/240 V
Power Capacity
330 Watt / 550 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
4 x power IEC 60320 C13 (surge) ¦ 4 x power IEC 60320 C13 (UPS and surge)
Battery
Lead Acid
Run Time (Up To)
8 min
Networking
USB
Dimensions (WxDxH)
14 cm x 32.5 cm x 8.6 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - external
Power Device
Input Voltage
AC 220-240 V
Input Voltage Range
AC 161 - 284 V
Frequency Provided
50/60 Hz
Input Wiring
1-phase
Frequency Required
50/60 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13 (surge) ¦ 4 x power IEC 60320 C13 (UPS and surge)
Output Voltage
AC 220/230/240 V 50/60 Hz
Max Electric Current
10 A
Power Capacity
330 Watt / 550 VA
Surge Suppression
Yes
Circuit Protection
Circuit breaker
Battery
Technology
Lead Acid
Networking
Remote Management Interface
USB
Expansion / Connectivity
Interfaces
1 x management (USB)
Miscellaneous
Cables Included
2 x power cable ¦ USB cable
Features
On/off switch, reset button, deep discharge protection, cold-start function
Compliant Standards
CB, IEC 62040-3, IEC 62040-2, EAC, IEC 62040-1, IEC 62040-4, IEC 61643-11, CM, Ukraine
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Dimensions & Weight
Width
14 cm
Depth
32.5 cm
Height
8.6 cm
Weight
3.2 kg
