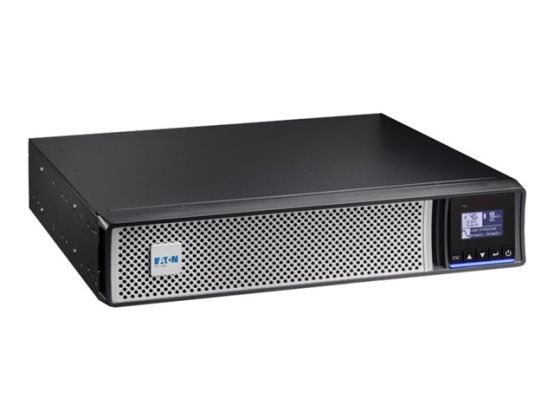

The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.
Delivers clean sinewave output
Provides more real power (watts) to protect more equipment with a Unity power factor (VA=W)
LCD display for real-time status and measurements
Meter energy consumption (down to the managed outlet groups)
Output connectors8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
BatteryLead Acid expandable - 9 Ah
Batteries Qty6
NetworkingRS-232, USB
ColourBlack, silver
Environmental StandardsENERGY STAR
Manufacturer Warranty3-year warranty
Extended Specification
General
Device TypeUPS - rack-mountable / external
Height (Rack Units)2U
ColourBlack, silver
Power Device
UPS TechnologyLine interactive
Input VoltageAC 200/208/220/230/240 V
Input Voltage RangeAC 160 - 294 V
Input Voltage Range (Adjustable)AC 150 - 294 V
Frequency Provided50/60 Hz
Input Wiring1-phase
Frequency Required47 - 70 Hz
Input Connectors1 x power IEC 60320 C20
Power Output Connectors Details8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage50/60 Hz
Power Capacity3000 Watt / 3000 VA
Output WaveformSinewave
Battery
TypeExpandable
Quantity6
TechnologyLead Acid
Voltage Provided12 V
Capacity9 Ah
FeaturesMaintenance free
Networking
Remote Management InterfaceRS-232, USB
Expansion / Connectivity
Interfaces1 x management (RS-232) ¦ 1 x management (USB)
Expansion Slots1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Cables IncludedPower cable - external - 1.8 m ¦ USB cable - external ¦ Serial cable - external
Rack Mounting KitIncluded
FeaturesAdvance Battery Management (ABM), LCD display, Automatic Voltage Regulation (AVR), deep discharge protection, automatic shut down, automatic self-test, energy metre
Compliant StandardsUL 1778, IEC 62040-3, IEC 62040-2, RoHS, KCC, cTUVus, REACH, CSA 22.2, EN 62040-2, EAC, EN 62040-3, IEC 62040-1, EN 62040-1, CM, UKCA
Environmental Standards
ENERGY STARYes
Manufacturer Warranty
Service & SupportLimited warranty - 3 years ¦ Limited warranty - batteries - 2 years
