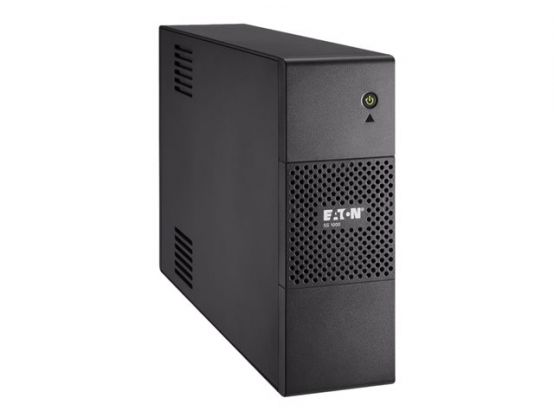

Eaton 5S 1500i - UPS - 900 Watt - 1500 VA
Checking delivery…
Product details
UPS
AC 220/230/240 V
900 Watt
1500 VA
Payment options available at checkout
Main features
Eaton 5S 1500i
UPS
AC 220/230/240 V
900 Watt
1500 VA
1-phase
9 Ah
USB
output connectors: 8
black
Overview
The compact Eaton 5S UPS delivers backup power for desktop PCs and workstations. The eco-control capability enables you save up to 30 percent in energy consumption. The 5S displays critical UPS information on battery time and outage tracking through a user-friendly LCD interface.
Power management: enhance your power protection capabilities and ensure safe system shutdown
LCD display: access critical UPS information including battery time and outage tracking in a single screen view with the user friendly LCD
Eco-control: save up to 30 percent on energy consumption by shutting down non-essential peripherals when the computer is turned off
Convenient form factor: fit the 5S easily into tight spaces with its slim form factor
Surge protection: provide surge protection for network phone lines, cable TV and satellite applications
Product Description
Eaton 5S 1500i - UPS - 900 Watt - 1500 VA
Device Type
UPS - external
Weight
12.5 kg
Input Wiring
1-phase
Input Voltage
AC 220/230/240 V
Output Voltage
AC 184-276 V
Power Capacity
900 Watt / 1500 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
4 x power IEC 60320 C13 (surge) ¦ 4 x power IEC 60320 C13 (UPS and surge)
Battery
Lead Acid - 9 Ah
Batteries Qty
2
Run Time (Up To)
2 min at full load
Networking
USB
Included Accessories
BS cord 10A
Colour
Black
Dimensions (WxDxH)
8.7 cm x 38.2 cm x 25 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - external
Colour
Black
Power Device
UPS Technology
Line interactive
Input Voltage
AC 220/230/240 V
Input Voltage Range
AC 175 - 275 V
Input Wiring
1-phase
Frequency Required
46 - 70 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
4 x power IEC 60320 C13 (surge) ¦ 4 x power IEC 60320 C13 (UPS and surge)
Output Voltage
AC 184-276 V
Power Capacity
900 Watt / 1500 VA
Dataline Surge Protection
Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line
Circuit Protection
Circuit breaker
Efficiency
97%
Power Factor (PF)
0.6
Battery
Quantity
2
Technology
Lead Acid
Voltage Provided
12 V
Capacity
9 Ah
Run Time (Up To)
2 min at full load ¦ 11 min at half load ¦ 8 min at 70% load
Features
Sealed
Networking
Remote Management Interface
USB
Expansion / Connectivity
Interfaces
1 x management (USB) - 4 pin USB Type B
Miscellaneous
Included Accessories
BS cord 10A
Cables Included
USB cable ¦ 2 x power cable (IEC)
Features
Automatic Voltage Regulation (AVR), deep discharge protection, cold-start function, booster technology, fader technology
Compliant Standards
CB, IEC 62040-1, EN 62040-1, IEC/EN 62040-4
Manufacturer Warranty
Service & Support
Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
35 °C
Humidity Range Operating
0 - 85%
Dimensions & Weight
Width
8.7 cm
Depth
38.2 cm
Height
25 cm
Weight
12.5 kg
