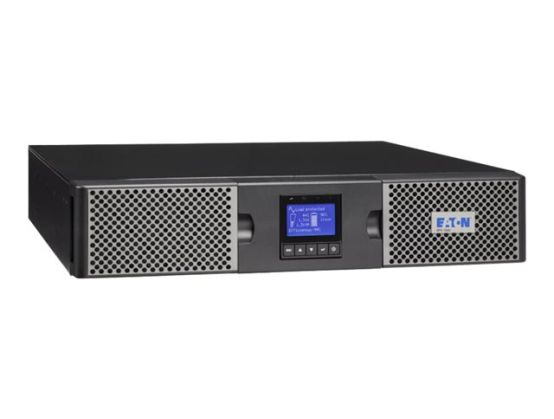

Eaton 9PX 1000i RT2U Netpack - UPS - 1000 Watt - 1000 VA
Manufacture#: 9PX1000IRTN
Checking delivery…
Product details
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
1000 Watt
1000 VA
Payment options available at checkout
Main features
Eaton 9PX 1000i RT2U Netpack
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
1000 Watt
1000 VA
RS-232, USB, Ethernet 10/100/1000
output connectors: 8
PFC
2U
Overview
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Product Description
Eaton 9PX 1000i RT2U Netpack - UPS - 1000 Watt - 1000 VA
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Rack Size
2U
Weight
17.4 kg
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V
Power Capacity
1000 Watt / 1000 VA
Input Connectors
1 x power IEC 60320 C14
Output connectors
Power IEC 60320 C14 ¦ 8 x power IEC 60320 C13
Networking
RS-232, USB, Ethernet 10/100/1000
Dimensions (WxDxH)
44 cm x 45 cm x 8.65 cm
Environmental Standards
ENERGY STAR
Manufacturer Warranty
3-year warranty
General
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Height (Rack Units)
2U
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 176 - 276 V
Frequency Required
40 - 70 Hz
Input Connectors
1 x power IEC 60320 C14
Power Output Connectors Details
Power IEC 60320 C14 ¦ 8 x power IEC 60320 C13
Output Voltage
AC 200/208/220/230/240 V
Power Capacity
1000 Watt / 1000 VA
Efficiency
98%
Battery
Run Time (Up To)
28 min at 300 Watts ¦ 16 min at 500 Watts ¦ 9 min at 800 Watts
Networking
Remote Management Interface
RS-232, USB, Ethernet 10/100/1000
Expansion / Connectivity
Interfaces
1 x management (USB) ¦ 1 x management (RS-232) ¦ 1 x management (Gigabit Ethernet) - RJ-45
Expansion Slots
1 (total) / 0 (free) x Expansion Slot
Miscellaneous
Features
LCD display, audible alarm, overload protection, cold-start function, internal bypass
Compliant Standards
FCC Class B certified, TUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1
Software / System Requirements
Software Included
Intelligent Power Software Suite
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
35 dBA
Dimensions & Weight
Width
44 cm
Depth
45 cm
Height
8.65 cm
Weight
17.4 kg
