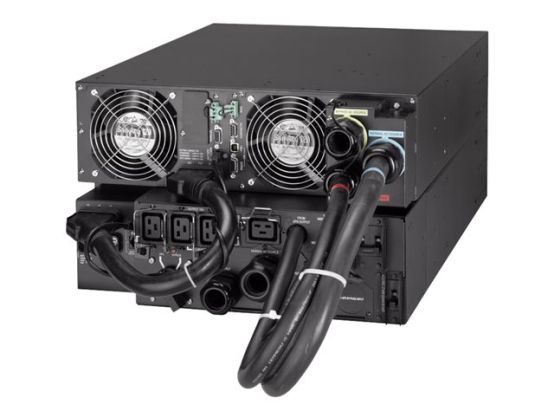

Eaton 9PX 9PX11KIBP31 - UPS (rack-mountable / external) - AC 380/400/415 V - 10000 Watt - 11000 VA - RS-232, USB - PFC - 6U - 19"
Manufacture#: 9PX11KIBP31
£4933 .57
£5920.28 inc VAT
Checking delivery…
Product details
UPS (rack-mountable / external)
AC 380/400/415 V
10000 Watt
11000 VA
Payment options available at checkout
Main features
Eaton 9PX 9PX11KIBP31
UPS (rack-mountable / external)
AC 380/400/415 V
10000 Watt
11000 VA
RS-232, USB
PFC
6U
19"
Overview
The Eaton 9PX UPS provides energy-efficient power protection for small & medium Datacentres, IT rooms and Infrastructure. Delivering double conversion protection with 40% less energy usage 9PX is the perfect UPS for IT and Facility managers that are concerned by energy cost and are looking for next generation power protection solutions.
Product Description
Eaton 9PX 9PX11KIBP31 - UPS - 10000 Watt - 11000 VA
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Rack Size
19" - 6U
Weight
88 kg
Input Voltage
AC 380/400/415 V
Output Voltage
AC 200/208/220/230/240/250 V ± 1%
Power Capacity
10000 Watt / 11000 VA
Input Connectors
Hardwire
Output connectors
4 x power IEC 60320 C19 ¦ 1 x hardwire
Battery
Expandable
Run Time (Up To)
9 min at 70% load
Networking
RS-232, USB
Dimensions (WxDxH)
26 cm x 70 cm x 44 cm
Environmental Standards
ENERGY STAR
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Height (Rack Units)
6U
Rack Size
19"
Power Device
UPS Technology
On-line
Input Voltage
AC 380/400/415 V
Input Voltage Range
AC 305 - 480 V
Frequency Provided
50/60 Hz
Frequency Required
50/60 Hz
Input Connectors
Hardwire
Power Output Connectors Details
4 x power IEC 60320 C19 ¦ 1 x hardwire
Output Voltage
AC 200/208/220/230/240/250 V ± 1% - 50/60 Hz
Power Capacity
10000 Watt / 11000 VA
Battery
Type
Expandable
Run Time (Up To)
13 min at half load ¦ 9 min at 70% load
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Features
Advance Battery Management (ABM), LCD display, built-in maintenance bypass, LED indicators, deep discharge protection, automatic self-test
Compliant Standards
CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, EN 62040-1-1, EN 62040-2
Environmental Standards
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
50 dB
Dimensions & Weight
Width
26 cm
Depth
70 cm
Height
44 cm
Weight
88 kg
