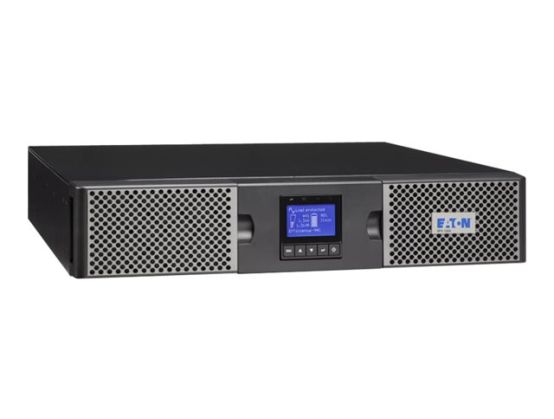

The Eaton 9PX lithium-ion rackmount and tower UPS provides long life expectancy for UPS and batteries.
The 9PX lithium-ion UPS has the same reliable features as the lead-acid UPS, including load segments that allow for prioritized shutdown, remote power on (RPO), remote on/off (ROO) and output relay ports that increase control capabilities.
Run Time (Up To)10 min at full load ¦ 21 min at half load ¦ 45 min at 300 Watts ¦ 30 min at 500 Watts ¦ 20 min at 800 Watts ¦ 13 min at 1200 Watts
FeaturesHot-swappable, integrated battery management system (BMS)
Networking
Remote Management InterfaceEthernet 10/100/1000, RS-232, USB
Remote Management ProtocolSNMP
Expansion / Connectivity
Interfaces1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x remote power (on/off) - terminal block ¦ 1 x remote power off - terminal block ¦ 1 x relay output - 3 pin terminal block ¦ 1 x management (Gigabit Ethernet) - RJ-45
Expansion Slots1 (total) / 0 (free) x Expansion Slot
Miscellaneous
Included AccessoriesTower stand
Cables IncludedSerial cable - external ¦ USB cable - external ¦ 2 x power cable - external
Rack Mounting KitIncluded
FeaturesLCD display, double conversion, internal bypass, automatic shut down
Compliant StandardsUL 2900-1, IEC 62443-4-2, EN 62040-1, IEC 62040-1, UL 1778, CSA 22.2, EN 62040-2, IEC 62040-2, FCC Class B certified, CISPR 22 Class B, CB, TUV, EAC
