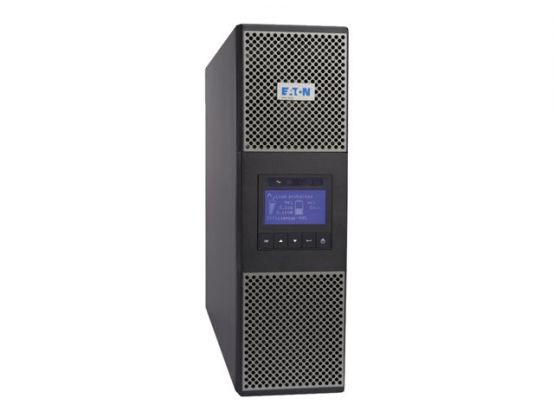

As an industry professional, and because of rising energy costs and the business need for energy-efficient performance, you'll be looking for ways to reduce costs and consumption. The Eaton 9PX UPS enables you to secure all your mission-critical applications, giving you the reductions in energy usage and costs you need.¦Essentially, the Eaton 9PX UPS gives you the chance to optimize power density and minimize capital and operating expenditure, along with the assurance that, should the power go down, critical processes will be maintained in your IT infrastructures and other applications.
Output connectors6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
BatteryLead Acid expandable - 7 Ah
Batteries Qty6
Run Time (Up To)3 min at full load
NetworkingRS-232, USB
Included AccessoriesTower stand
ColourBlack, silver
Dimensions (WxDxH)44 cm x 48.5 cm x 13 cm
Environmental StandardsENERGY STAR
Manufacturer Warranty3-year warranty
Extended Specification
General
Device TypeUPS - rack-mountable / external
Height (Rack Units)3U
Rack Size19"
ColourBlack, silver
Power Device
UPS TechnologyOn-line
Input VoltageAC 200/208/220/230/240 V
Input Voltage RangeAC 100 - 276 V
Frequency Provided50/60 Hz
Input Wiring1-phase
Frequency Required40 - 70 Hz
Input Connectors1 x power BS
Power Output Connectors Details6 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19
Output VoltageAC 200/208/220/230/240 V ± 1% - 50/60 Hz
Power Capacity2200 Watt / 2200 VA
Output WaveformSinewave
Efficiency98% Eco mode, 93.5% online mode
Power Factor (PF)0.99
Battery
TypeExpandable
Quantity6
TechnologyLead Acid
Voltage Provided12 V
Capacity7 Ah
Run Time (Up To)3 min at full load
FeaturesSealed
Networking
Remote Management InterfaceRS-232, USB
Expansion / Connectivity
Interfaces1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x remote power (on/off) - mini terminal block ¦ 1 x remote power off - mini terminal block ¦ 1 x relay output - mini terminal block
Expansion Slots1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Included AccessoriesTower stand
Cables Included2 x power cable - external ¦ USB cable - external ¦ Serial cable - external ¦ Power cable - external - 1.8 m
Compliant StandardsTUV, CISPR 22 Class B, UL 1778, CB, IEC 62040-2, cULus, CSA 22.2, KC, EN 62040-2, EAC, RCM, IEC 62040-1, EN 62040-1, FCC Part 15 Class B
Environmental Standards
ENERGY STARYes
Manufacturer Warranty
Service & SupportLimited warranty - 3 years ¦ Limited warranty - batteries - 2 years
