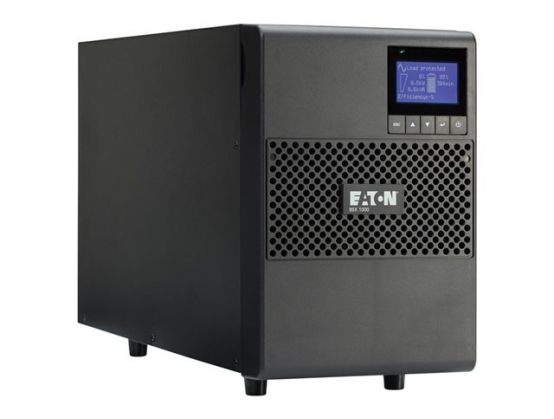

Eaton 9SX 1000VA 900W 120V Online Double-Conversion UPS - 6 NEMA 5-15R Outlets, Cybersecure Network Card Option, Extended Run, Tower Battery Backup - UPS - AC 100/110/120/125 V - 900 Watt - 1000 VA - RS-232, USB - output connectors: 6 - black - for P/N: 7
Checking delivery…
Product details
6 NEMA 5-15R Outlets, Cybersecure Network Card Option, Extended Run, Tower Battery Backup
UPS
AC 100/110/120/125 V
900 Watt
Payment options available at checkout
Main features
Eaton 9SX 1000VA 900W 120V Online Double-Conversion UPS
6 NEMA 5-15R Outlets, Cybersecure Network Card Option, Extended Run, Tower Battery Backup
UPS
AC 100/110/120/125 V
900 Watt
1000 VA
RS-232, USB
output connectors: 6
black
for P/N: 744-A4311
Overview
The Eaton 9SX UPS provides reliable double-conversion online power you expect from a 9-series UPS in a convenient and compact tower. The 9SX UPS is ideal for light industrial, automations and other mission critical IT applications where space is limited, but premium power reliability is essential.
Product Description
Eaton 9SX 1000VA 900W 120V Online Double-Conversion UPS - 6 NEMA 5-15R Outlets, Cybersecure Network Card Option, Extended Run, Tower Battery Backup - UPS - 900 Watt - 1000 VA
Device Type
UPS - external
Weight
14.8 kg
Input Voltage
AC 100/110/120/125 V
Output Voltage
AC 100/110/120/125 V
Power Capacity
900 Watt / 1000 VA
Input Connectors
1 x power NEMA 5-15P
Output connectors
6 x power NEMA 5-15R
Battery
Lead Acid
Run Time (Up To)
6 min at full load
Networking
RS-232, USB
Colour
Black
Dimensions (WxDxH)
16 cm x 38.6 cm x 25.1 cm
Manufacturer Warranty
2-year warranty
Designed For
P/N: 744-A4311
General
Device Type
UPS - external
Colour
Black
Power Device
UPS Technology
On-line
Input Voltage
AC 100/110/120/125 V
Input Voltage Range
AC 100 - 138 V
Input Voltage Range (Adjustable)
AC 60 - 144 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
1 x power NEMA 5-15P
Power Output Connectors Details
6 x power NEMA 5-15R
Output Voltage
AC 100/110/120/125 V 50/60 Hz
Power Capacity
900 Watt / 1000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Efficiency
88%
Power Factor (PF)
0.99
Battery
Technology
Lead Acid
Features
Sealed
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Cables Included
Serial cable - external - 1.83 m ¦ USB cable - external - 1.83 m ¦ Power cable 2.44 m
Features
Advance Battery Management (ABM), hot-swappable batteries, LCD display, double conversion, 3-stage charging
Compliant Standards
FCC, cULus
Software / System Requirements
Software Included
Intelligent Power Manager
Manufacturer Warranty
Service & Support
Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
0 - 96% (non-condensing)
Sound Emission
50 dBA
Dimensions & Weight
Width
16 cm
Depth
38.6 cm
Height
25.1 cm
Weight
14.8 kg
Compatibility Information
Designed For
P/N: 744-A4311
