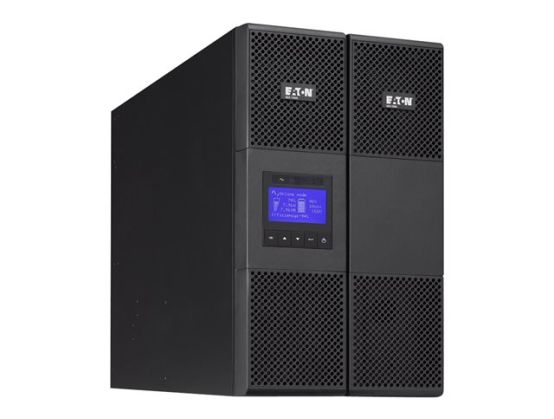

Eaton 9SX 9SX11KIRT - UPS - 10000 Watt - 11000 VA
£4783 .07
£5739.68 inc VAT
Checking delivery…
Product details
UPS (rack-mountable / external)
AC 200/208/220/230/240/250 V
10000 Watt
11000 VA
Payment options available at checkout
Main features
Eaton 9SX 9SX11KIRT
UPS (rack-mountable / external)
AC 200/208/220/230/240/250 V
10000 Watt
11000 VA
RS-232, USB
PFC
6U
Overview
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
Provides more real power (watts) to protect more equipment with a 0.9 power factor
Energy Star qualified, provides the highest efficiency level to reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Meter energy consumption (at the UPS level)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
Long backup time with up to 12 optional EBM
Cable locking system
Warranty: 2 years
Product Description
Eaton 9SX 9SX11KIRT - UPS - 10000 Watt - 11000 VA
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Rack Size
6U
Weight
86 kg
Input Voltage
AC 200/208/220/230/240/250 V
Output Voltage
AC 200/208/220/230/240/250 V ± 1%
Power Capacity
10000 Watt / 11000 VA
Input Connectors
Hardwire
Output connectors
1 x hardwire
Run Time (Up To)
2 min at full load
Networking
RS-232, USB
Dimensions (WxDxH)
26 cm x 70 cm x 44 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Height (Rack Units)
6U
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240/250 V
Input Voltage Range
AC 176 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
Hardwire
Power Output Connectors Details
1 x hardwire
Output Voltage
AC 200/208/220/230/240/250 V ± 1% - 50/60 Hz
Power Capacity
10000 Watt / 11000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Efficiency
98%
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x serial - RS-232 ¦ 1 x USB ¦ 1 x management - EPO (emergency power off) - terminal block ¦ 1 x remote control - terminal block
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, short-circuit protection
Compliant Standards
UL, ISO 9001, ISO 140001, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, CSA 22.2, EN 62040-1-1, EN 62040-2
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
50 dBA
Dimensions & Weight
Width
26 cm
Depth
70 cm
Height
44 cm
Weight
86 kg
