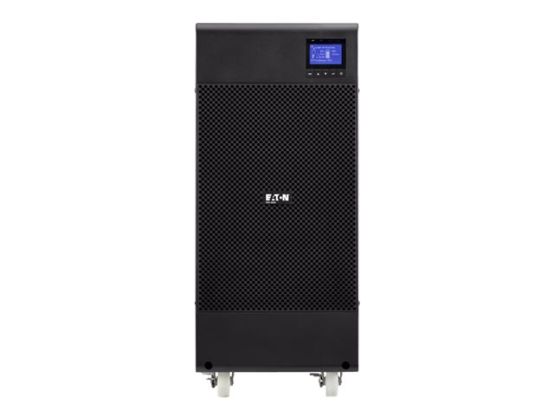

Eaton 9SX 9SX5KI - UPS - 4500 Watt - 5000 VA
£2739 .55
£3287.46 inc VAT
Checking delivery…
Product details
UPS
AC 200/208/220/230/240 V
4500 Watt
5000 VA
Payment options available at checkout
Main features
Eaton 9SX 9SX5KI
UPS
AC 200/208/220/230/240 V
4500 Watt
5000 VA
RS-232, USB
PFC
Overview
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.
Double conversion topology
Constantly monitors power conditions and regulates voltage and frequency
Provides more real power (watts) to protect more equipment with a 0.9 power factor
Energy efficient, reduce energy and cooling costs
Internal bypass allows service continuity in case of UPS fault
Next-generation graphical LCD display
Meter energy consumption (at the UPS level)
Hot swappable batteries
Advanced Battery Management (ABM) technology to increase battery lifetime
Long backup time with up to 4 optional EBM
Warranty: 2 years
Product Description
Eaton 9SX 9SX5KI - UPS - 4500 Watt - 5000 VA
Device Type
UPS - Power Factor Correction (PFC) - external
Weight
65.5 kg
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V
Power Capacity
4500 Watt / 5000 VA
Input Connectors
Terminal block
Output connectors
Terminal block
Battery
Expandable
Run Time (Up To)
19 min at 70% load
Networking
RS-232, USB
Dimensions (WxDxH)
24.4 cm x 54.2 cm x 57.5 cm
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - Power Factor Correction (PFC) - external
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 120 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
Terminal block
Power Output Connectors Details
Terminal block
Output Voltage
AC 200/208/220/230/240 V 50/60 Hz
Power Capacity
4500 Watt / 5000 VA
Efficiency
94% online mode, 98% hi-efficiency mode
Power Factor (PF)
0.9
Battery
Type
Expandable
Run Time (Up To)
19 min at 70% load ¦ 30 min at half load ¦ 2 min at 110% load ¦ 1 min at 125% load ¦ 0.17 min at 150% load ¦ 0.008 min at 150% load
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off) ¦ 1 x relay output
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Features
Advance Battery Management (ABM), LCD display, deep discharge protection, cold-start function, automatic self-test, double conversion, internal bypass, hot-swappable batteries, 3-stage charging, energy metre, temperature-compensated battery charging, overload protection
Compliant Standards
UL 1778, CB, IEC 62040-3, IEC 62040-2, FCC Part 15 A, EN 62040-3, EN 62040-2, EN 62040-1, IEC 62040-1
Software / System Requirements
Software Included
Intelligent Power Software Suite
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
46 dB
Dimensions & Weight
Width
24.4 cm
Depth
54.2 cm
Height
57.5 cm
Weight
65.5 kg
