EATON

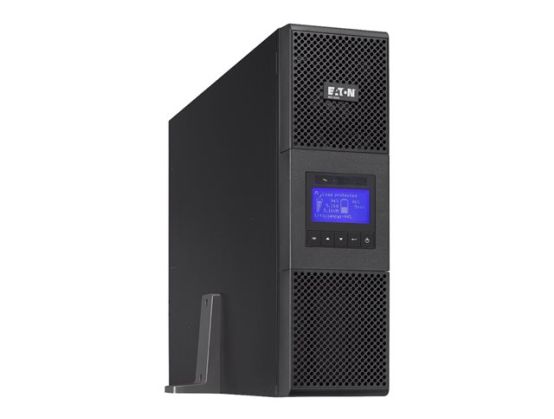

Eaton 9SX 9SX5KIRT - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 4500 watt - 5000 VA - RS-232, USB - PFC - 3U - 19"

Name: Eaton 9SX 9SX5KIRT - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 4500 watt - 5000 VA - RS-232, USB - PFC - 3U - 19"
Brand: EATON
SKU: 1TPOWUPS-005764
Price: 3136.51 GBP
Availability: OutOfStock

SKU

1TPOWUPS-005764

Manufacture#: 9SX5KIRT

£2613.76

£3136.51 inc VAT

Checking delivery…

Product details

UPS (rack-mountable / external)
AC 200/208/220/230/240 V
4500 Watt
5000 VA

View full product specification

Notify me when this product is in stock

Payment options available at checkout

Compare product

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

Main features

Eaton 9SX 9SX5KIRT
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
4500 Watt
5000 VA
RS-232, USB
PFC
3U
19"

Overview

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.

Specification

Product Description Eaton 9SX 9SX5KIRT - UPS - 4500 Watt - 5000 VA

Device Type UPS - Power Factor Correction (PFC) - rack-mountable / external

Rack Size 19" - 3U

Weight 48 kg

Input Voltage AC 200/208/220/230/240 V

Output Voltage AC 200/208/220/230/240 V ± 1%

Power Capacity 4500 Watt / 5000 VA

Input Connectors Hardwire

Output connectors 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x hardwire

Battery Form Factor Plug-in module

Run Time (Up To) 3 min at full load

Networking RS-232, USB

Included Accessories Tower stand

Dimensions (WxDxH) 44 cm x 68.5 cm x 13 cm

Environmental Standards ENERGY STAR

Manufacturer Warranty 2-year warranty

General

Device Type UPS - Power Factor Correction (PFC) - rack-mountable / external

Battery Enclosure Type Plug-in module

Height (Rack Units) 3U

Rack Size 19"

Power Device

UPS Technology On-line

Input Voltage AC 200/208/220/230/240 V

Input Voltage Range AC 176 - 276 V

Frequency Provided 50/60 Hz

Frequency Required 40 - 70 Hz

Input Connectors Hardwire

Power Output Connectors Details 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x hardwire

Output Voltage AC 200/208/220/230/240 V ± 1% - 50/60 Hz

Max Electric Current 21 A

Power Capacity 4500 Watt / 5000 VA

Output Waveform Sinewave

Surge Suppression Yes

Circuit Protection Fuse

Battery

Voltage Provided 12 V

Networking

Remote Management Interface RS-232, USB

Expansion / Connectivity

Interfaces 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off)

Expansion Slots 1 (total) / 1 (free) x Expansion Slot

Miscellaneous

Included Accessories Tower stand

Cables Included 2 x power cable - external ¦ Serial cable - external ¦ USB cable - external

Rack Mounting Kit Included

Features Advance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, cold-start function, automatic self-test

Compliant Standards UL, CISPR 22 Class A, ISO 9001, ISO 140001, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, CSA 22.2, IEC 61000-2-2, EN 62040-1-1, EN 62040-2

Software / System Requirements

Software Included Intelligent Power Software Suite

Sustainability Information

ENERGY STAR Yes

Manufacturer Warranty

Service & Support Limited warranty - 2 years

Environmental Parameters

Min Operating Temperature 0 °C

Max Operating Temperature 40 °C

Sound Emission 45 dB

Dimensions & Weight

Width 44 cm

Depth 68.5 cm

Height 13 cm

Weight 48 kg

Product Accessories

EATON

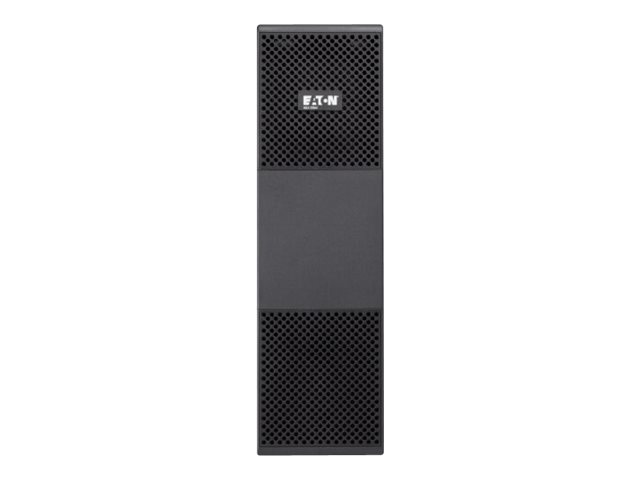

EATON Eaton 9SX 9SXEBM180RT - Battery enclosure (rack-mountable / external) - Lead Acid - 3U - 19" - for 9SX 9SX5KIRT
