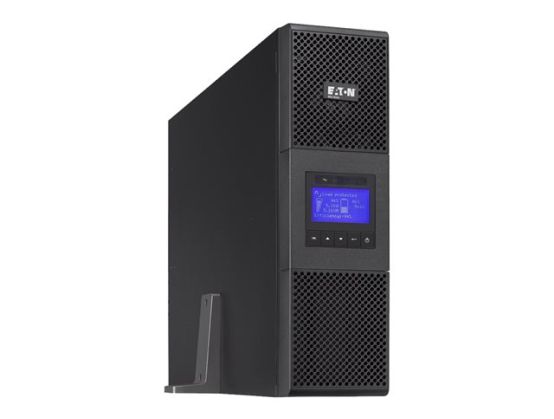

Eaton 9SX 9SX6KIRT - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 5400 watt - 6000 VA - RS-232, USB - PFC - 3U - 19"
£2880 .05
£3456.06 inc VAT
Checking delivery…
Product details
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
5400 Watt
6000 VA
Payment options available at checkout
Main features
Eaton 9SX 9SX6KIRT
UPS (rack-mountable / external)
AC 200/208/220/230/240 V
5400 Watt
6000 VA
RS-232, USB
PFC
3U
19"
Overview
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.
Product Description
Eaton 9SX 9SX6KIRT - UPS - 5400 Watt - 6000 VA
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Rack Size
19" - 3U
Weight
48 kg
Input Voltage
AC 200/208/220/230/240 V
Output Voltage
AC 200/208/220/230/240 V ± 1%
Power Capacity
5400 Watt / 6000 VA
Input Connectors
Hardwire
Output connectors
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x hardwire
Battery Form Factor
Plug-in module
Run Time (Up To)
3 min at full load
Networking
RS-232, USB
Included Accessories
Tower stand
Dimensions (WxDxH)
44 cm x 68.5 cm x 13 cm
Environmental Standards
ENERGY STAR
Manufacturer Warranty
2-year warranty
General
Device Type
UPS - Power Factor Correction (PFC) - rack-mountable / external
Battery Enclosure Type
Plug-in module
Height (Rack Units)
3U
Rack Size
19"
Power Device
UPS Technology
On-line
Input Voltage
AC 200/208/220/230/240 V
Input Voltage Range
AC 176 - 276 V
Frequency Provided
50/60 Hz
Frequency Required
40 - 70 Hz
Input Connectors
Hardwire
Power Output Connectors Details
8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x hardwire
Output Voltage
AC 200/208/220/230/240 V ± 1% - 50/60 Hz
Max Electric Current
25.2 A
Power Capacity
5400 Watt / 6000 VA
Output Waveform
Sinewave
Surge Suppression
Yes
Circuit Protection
Fuse
Battery
Voltage Provided
12 V
Networking
Remote Management Interface
RS-232, USB
Expansion / Connectivity
Interfaces
1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B ¦ 1 x EPO (emergency power off)
Expansion Slots
1 (total) / 1 (free) x Expansion Slot
Miscellaneous
Included Accessories
Tower stand
Cables Included
2 x power cable - external ¦ Serial cable - external ¦ USB cable - external
Rack Mounting Kit
Included
Features
Advance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, cold-start function, automatic self-test
Compliant Standards
UL, CISPR 22 Class A, ISO 9001, ISO 140001, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, CSA 22.2, IEC 61000-2-2, EN 62040-1-1, EN 62040-2
Software / System Requirements
Software Included
Intelligent Power Software Suite
Sustainability Information
ENERGY STAR
Yes
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Sound Emission
45 dB
Dimensions & Weight
Width
44 cm
Depth
68.5 cm
Height
13 cm
Weight
48 kg
